Sweet! Aston Martin Valen: Most powerful front-engine car

[Credit: All images courtesy of Aston Martin]





Aston Martin's new Valen super coupe is one for the record books: The limited-edition, V12 is the world's most powerful front-engine production car and the most powerful front-engine Aston Martin in the company's 113-year history. It's sophisticated, beefy, and a real looker too.

The car is the latest special project from Aston Martin's bespoke service, Q by Aston Martin, which previously gave us Valour, Valiant, and DBR22 -- all pretty spectacular specialty vehicles.

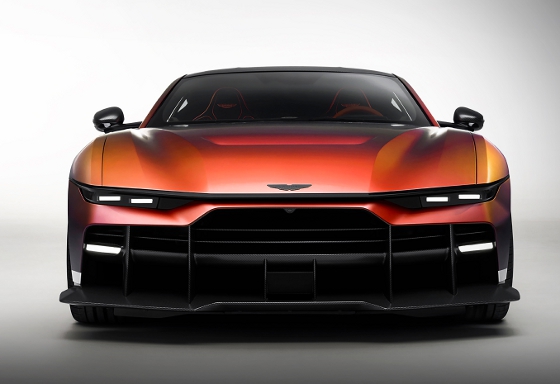

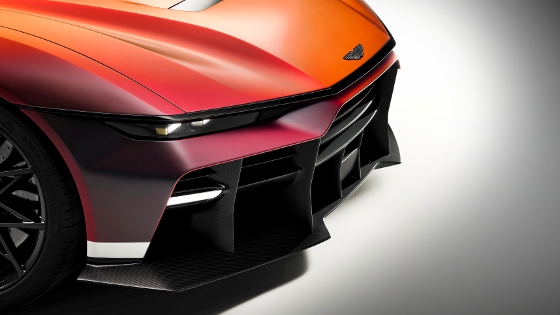

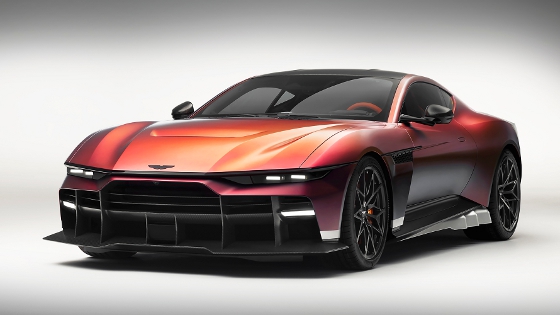

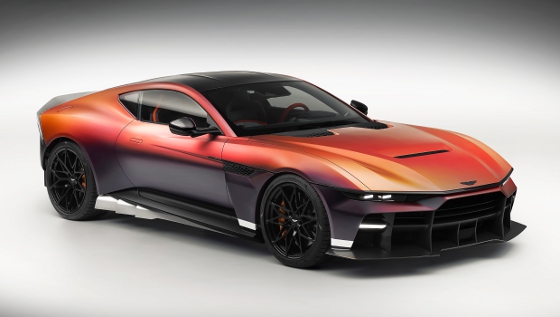

Valen presents a re-interpretation of Aston Martin's iconic front-engine formula. The car's dramatic frontal treatment is characterized by deeply recessed slimline headlamp units that are hooded beneath the sharp leading edge of the plunging front end line. Together with the more angular treatment of the radiator aperture, a bold geometric mesh grille and acutely angled front splitter create a distinctive character.

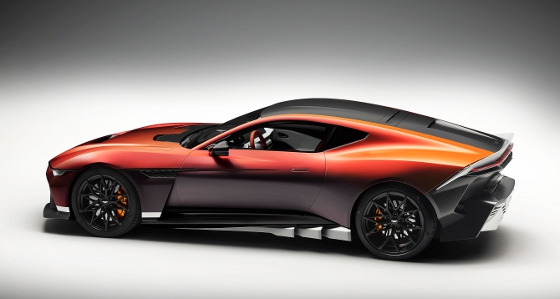

The front hood features a single top vent with perforations at the trailing edge. On each side, the traditional side strake has been sharpened and elongated and is now fully incorporated into a large functional vent that extracts air from the wheel arch and guides it down the rounded flanks. The strake feature extends almost the full length of the door before the swollen rear haunches widen to cover the rear wheels.

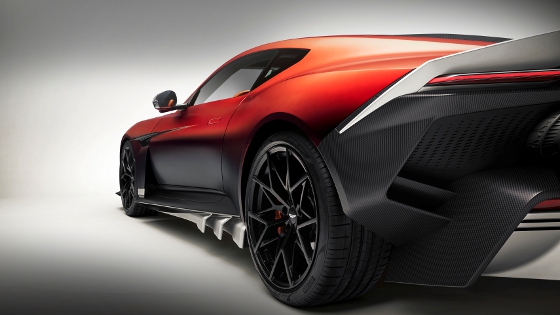

The lower section of each side is dominated by a stepped sill, which creates a tightly cinched waistline that emphasizes the muscular front and rear fender sections. Sharp saw-tooth vortex generators positioned on the trailing edge of the sills pull high-speed airflow from beneath the car to reduce lift and generate downforce. New side-glass quarter windows add to Valen's profile and demonstrate commitment to creating a car with a unique identity.

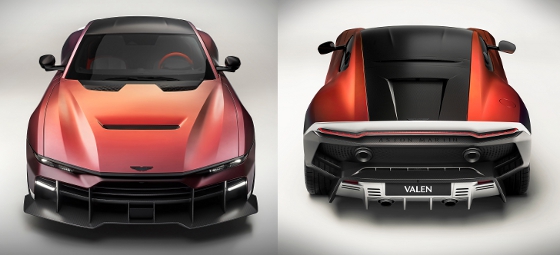

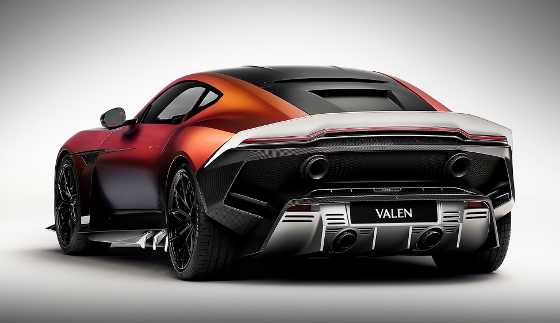

Valen's rear-design treatment is equally bold. Instead of a fixed rear window and trunk lid, both features have been replaced by a solid tailgate. Featuring an aerodynamic wing in its upper section, the tailgate opens onto a sizable trunk (170 liters) that is available with an optional bespoke luggage set (Touring Pack) to make the most of the available space. A soft, tailored cover can be unfolded to protect the paintwork when lifting cases in and out.

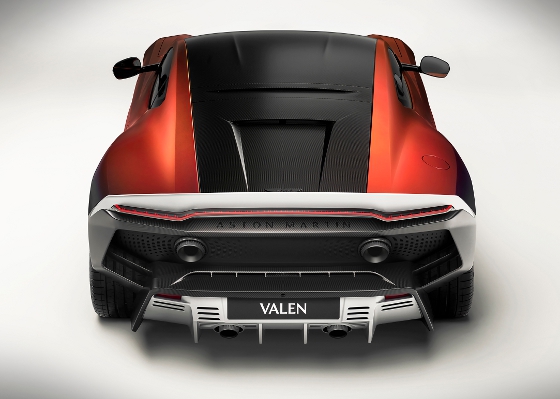

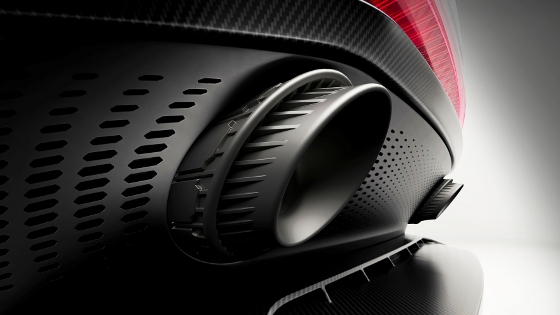

A bespoke, full-width light bar sits beneath the large upswept tail, which acts as a Gurney flap to generate downforce while incurring minimal drag and avoiding the need for motorsport-style wings. Below the vivid strip of light is a perforated panel to extract hot air from around the exhaust, which features a pair of high-set tailpipes mounted above the top of the rising rear diffuser and emits a soundtrack befitting a V12 supercar.

Valen is clad in a full-carbon fiber body and powered by the brand's most powerful version of its 5.2-liter twin-turbocharged V12 engine with 838 hp and 1,000 Nm of torque from just 2,500 rpm. Combined with targeted hardware and extensive software calibration to steering, suspension, and braking systems, Valen delivers a driver-focused configuration to match its raw performance. It has a sexy vibe to boot.

Reinforcing Valen's position as the most powerful front-engine supercar is a sharper-shifting 8-speed ZF automatic transmission, which uses race-proven shift strategies developed for Aston Martin's Vantage GT4 race program, with crisper and more engaging shifts in all drive modes, which has reduced Valen's 0- to 60-mph time to just 3.0 sec. Top speed is electronically limited to 214 mph.

To bring out the best from the V12 powertrain, Valen adopts a performance drive mode philosophy; Sport, Sport+, and Track modes create a true feeling of urgency and focus befitting supercar levels of performance and dynamics. Careful attention has also been paid to Valen's throttle mapping, which changes according to drive mode. For spirited road driving in Sport and Sport+ modes, the throttle pedal uses a shorter map to deliver more throttle earlier in its travel, while Track mode trades that urgency for a longer and more progressive delivery when on-limit precision is the priority.

Valen's commitment to performance extends to a significant weight savings of up to 110 kg over Aston Martin's core V12 platform -- a central focus of the program. This is achieved through use of a variety of lightweight, motorsport-inspired materials including carbon fiber, aluminum, titanium, and magnesium. An optional lightweight pack featuring machined-from-solid aluminum suspension arms, knuckles, and titanium chassis bolts makes for a 16.9-kg weight savings alone through meticulous manufacturing and extreme attention to detail.

New lightweight magnesium wheels are fitted as standard, minimizing unsprung mass to further improve steering response and bring added polish to Valen's wheel control and ride refinement. These wheels are shod with Aston Martin-tuned Pirelli P Zero R (275/35 ZR21 front, 325/30 ZR21 rear) and/or P Zero Winter 2 tires (275/35 R21 front, 325/30 R21 rear) developed specifically for Valen to ensure an optimal balance between everyday usability and dynamic track capability.

Valen also adopts Pirelli's latest "Cyber Tire" technology, the only hardware and software technology able to share real-time tire data with the vehicle's dynamic control systems. Developed in conjunction with Bosch Engineering, the system is fully integrated into the car's digital architecture, allowing the ESP, ABS, and traction control systems to continuously adapt their thresholds, optimizing control and safety.

A combination of significant hardware changes and targeted software calibration adjustments to the ESP, dampers, steering, cambers, and braking system delivers a marked character shift to give Valen a unique dynamic signature. Intense development focus has also been spent on the steering, sharpened to deliver feel, connection, and system stiffness through the chassis and software tuning. Steering efforts have been tuned for response, allowing Valen to behave like a shorter and lighter car.

Valen also employs a solid mounted rear subframe together with model-specific springs, helper springs, and Bilstein DTX semi-active dampers. Steering calibration maximizes the feeling of agility and exploits the front-end's limits of grip, but with meticulous care taken to ensure this rotational energy is matched by high levels of traction for a feeling of confident unity and front-to-rear connection.

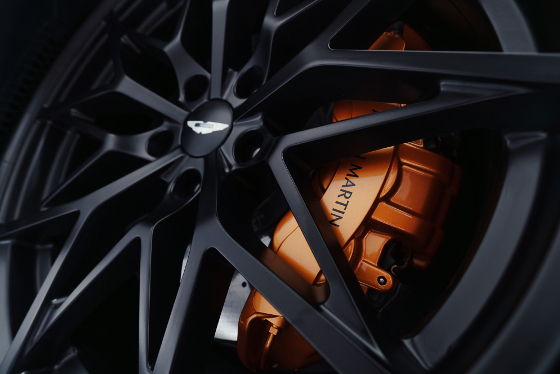

To ensure all points of contact between car and driver have cohesive feel and response, Valen's brake booster maintains a firm pedal for exceptional precision and complete driver confidence, allowing precise modulation of the 410-mm front and 360-mm rear carbon ceramic brakes from high and low speeds.

Through its new lightweight titanium exhaust system, Valen has a soundtrack to match its performance. The system has been developed specifically for Valen and features new micro mufflers ensuring compliance with homologation regulations; while saving weight and enhancing the sound quality that's such an essential part of enjoying a V12-engine car to the fullest.

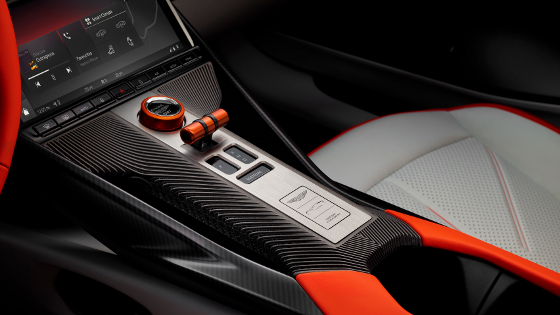

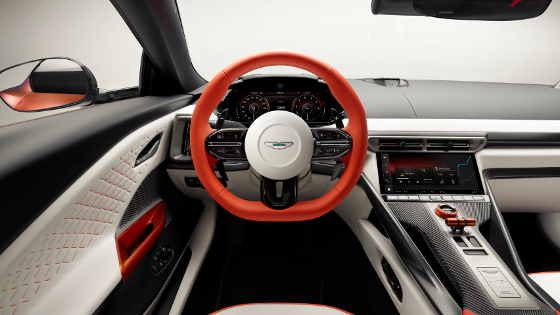

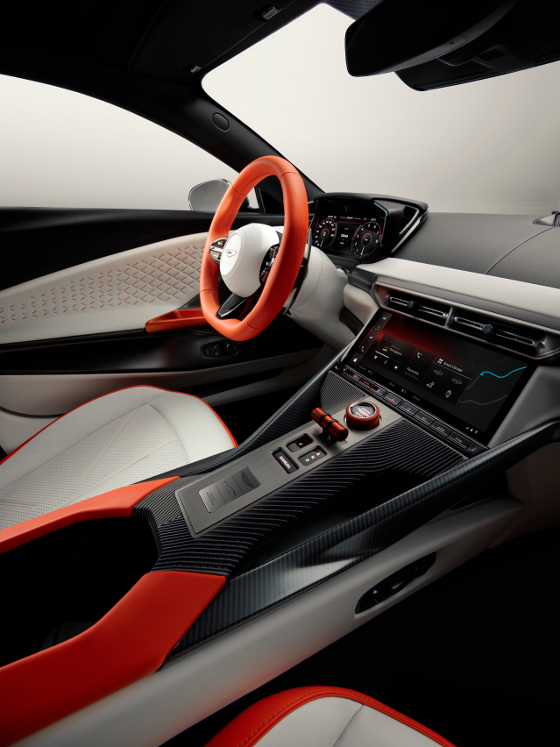

Inside, Valen has been developed around a clear principle of visual lightness, reflecting the significant mass reduction engineered throughout the car. Central to this is a slim center console, enabled by advanced 3D-printed components and incorporating the performance-focused switchpack introduced on Valhalla. Angled toward the driver, the inclined console creates a more focused and controlled cockpit environment, reinforcing the connection between driver and machine.

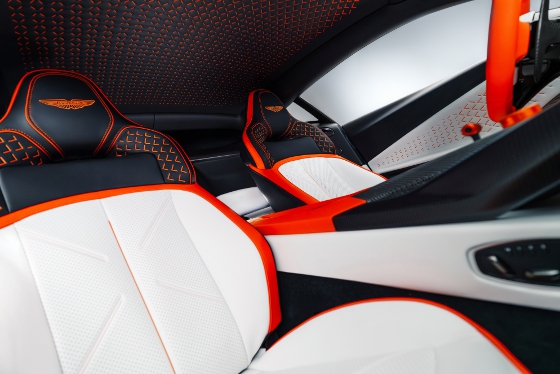

Valen's cabin offers a choice of newly developed Sports Plus seats, designed to combine support with long-distance comfort, or lightweight carbon fiber performance seats for a more focused driving experience. Together, these options allow customers to tailor the cockpit to their intended use and needs.

A new hierarchy of interior trim levels simplifies the selection process without limiting scope for individual choice. Customers first choose between a combination of Semi-Aniline Leather and Alcantara or full Semi-Aniline Leather, before choosing from five material splits (Monotone, Duotone, Light Duotone, Tritone, and Driver Focused).

Using the new upholstery quilting treatment developed for Valen as an example, the areas where this quilting is applied extends incrementally with each trim level, from door panels, doors, and seats to doors, seats, and headlining in the top-tier spec. The additional choice of a driver-focused option (which highlights the driver's seat) and an accent pack that adds contrast color detailing ensures a near-limitless choice of combinations.

Elsewhere, 3D-printed elements are used throughout the cabin, echoing the approach with previous limited-edition specials such as Valkyrie and DBS Zagato. These perforated sections reference the exterior cooling vents, adding visual intrigue and contributing to an increased sense of lightness and simplicity. The center console is also new, with elements taken from the Valhalla. The central touchscreen is reclined at more of an angle to better integrate within the sleek geometry of the pared-back interior design.

Functional items such as the air vents have been changed to further reduce visual clutter, and a new palette of anodizing colors has been developed, expanding the scope for embellishment and personalization offered via Q by Aston Martin

The example car is specified in a Q Ultra-developed paint color called Satin Andromeda Red, which blends into deep-red copper and rich golden highlights that shift dynamically to intense undertones of blue.

Production of the Valen supercar is strictly limited to 150 examples, with first deliveries scheduled for Q2 2027. Learn more at https://www.astonmartin.com/en-us/models/valen. Starting price is a cool $2 million. Definitely available with left-hand drive for the U.S. market.

Source: Aston Martin
