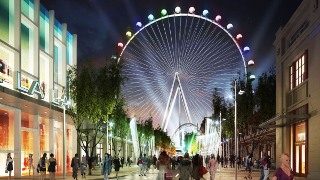

Bigger than the London Eye:
SKF wins contract for Caesars Las Vegas High Roller wheel

SKF has been awarded the contract to supply the two giant main bearings and related technologies for Caesars Entertainment Corporation's Las Vegas High Roller observation wheel, which is expected to soar at the heart of the world-famous Las Vegas Strip in late 2013. The 550-ft-tall wheel, eclipsing the famed 443-ft-tall London Eye, will be equipped with two SKF spherical roller bearings that will turn out to be the largest ever produced at the SKF manufacturing facility in Gothenburg, Sweden.

The two custom-designed SKF spherical roller bearings (one within each side) will be virtually unprecedented in weight and size. Each bearing will weigh approximately 8,800 kg and be designed with 2,300-mm outer diameter, 1,600-mm inner diameter, and width of 630 mm. Specially engineered features will include W26 lubrication holes in the inner ring, SKF NoWear-coated rollers, and PTFE coating in the bore. SKF additionally will incorporate advanced lubrication, sealing, and online condition-monitoring systems and take the lead in monitoring the bearings once the wheel is up and running.

SKF was awarded the contract by American Bridge Company (Coraopolis, PA), which is responsible for constructing the 143-m-diameter tension wheel. In addition to the two SKF bearing assemblies, the structure will consist of four steel support legs, a single braced leg, fixed spindle, rotating hub, 2-m-diameter tubular rim, and 112 locked coil cable assemblies as spokes.

The Las Vegas High Roller is the centerpiece of The LINQ, a planned $550 million open-air retail, dining, and entertainment district situated between Imperial Palace and Flamingo Las Vegas. Each of the wheel's 28 supersize cabins (which themselves will revolve) will accommodate up to 40 people during a 30-min ride.

The Las Vegas High Roller is the latest SKF big-wheel project in a growing portfolio of expertise. The Navy Pier Ferris wheel in Chicago similarly operates with two SKF spherical roller bearings, and SKF Reliability Systems retains responsibility for ongoing proactive maintenance programs.

Source: SKF

Published August 2012
