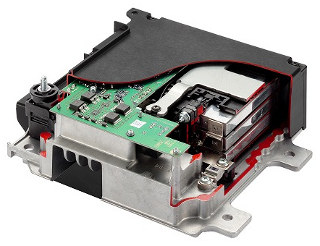

DENSO develops lithium-ion battery pack for stop/start systems

In a bid to further increase the fuel efficiency of vehicles with stop/start systems, DENSO Corporation has developed a new lithium-ion battery pack. The battery pack allows the stop/start system to use more regenerative power than current conventional systems that use a single lead-acid battery. DENSO's battery pack consists of a battery management unit and power supply control switch, as well as battery cells that are provided by a third-party source.

The new pack stores regenerated power and then supplies the stored regenerated power to the electrical and electronic components, such as the car navigation and audio systems. This reduces the power generation required by the alternator, which results in an overall load reduction on the engine and improves the vehicle's fuel economy.

The battery pack is naturally air-cooled and therefore does not require a dedicated battery cooling system. Because there is no need for auxiliary cooling components, this allows the battery to be lighter and more compact. This enables automakers more design flexibility, which is important for vehicles with limited space.

The batter pack has three main components:

• DENSO battery management unit monitors and controls the voltage of the lithium-ion battery cells to maintain the proper charge level to protect them from overcharge and over-discharge.
• Depending on the operational status of the vehicle, the power supply control switch controls the charging of the battery cells by the energy captured during deceleration and braking. It also controls the amount of power supplied to the car navigation, audio, and other systems during driving.
• High-power rechargeable lithium-ion battery cells, which have a higher energy density and charge more quickly than lead-acid batteries, can efficiently store more regenerated power quickly to vehicle's electronic and electrical components.

DENSO has developed different types of starters to meet the specific needs of its customers for their stop/start systems, including the Advanced Engagement (AE) Starter, Permanently Engaged (PE) Starter, and Tandem Solenoid (TS) Starter. Also, DENSO developed a Cold Storage (CS) Evaporator tht increases the effectiveness of idle-stop, particularly at high temperatures.

DENSO supplies the lithium ion battery pack, the TS starter, and Cold Storage Evaporator on the Suzuki Wagon R, which Suzuki Motor Corporation launched in the Japanese market earlier this month. DENSO will continue its efforts to expand these technologies to other automakers and other regions in the world.

Published October 2012
