TI unveils breakthrough battery-monitoring technology for lead-acid batteries

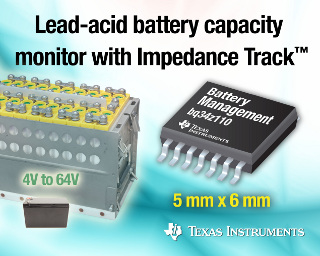

Texas Instruments (TI) recently introduced the first lead-acid battery-management gas gauge integrated circuit featuring the company's proprietary Impedance Track capacity measurement technology. The bq34z110 gas gauge IC, which comes in a small 14-pin package, is the industry's only scalable power management device to support multi-cell lead-acid battery packs with battery voltages of 4 V, 12 V, 24 V, 48 V, and higher. The highly accurate, simple-to-use gauge supports batteries used in mobile and stationary applications like medical instruments, wireless base stations and telecom shelters, e-bikes, inverters, and uninterruptible power supplies (UPS).

95 percent accurate monitoring for lead acid
Lead-acid batteries typically behave better than lithium chemistries in environments with wide temperature ranges. However, today's lead-acid battery designs do not accurately measure and report current battery capacity, which often frustrates the end-user, and can mean adding more batteries to keep the system adequately charged. The new bq34z110 gauge with Impedance Track technology constantly informs a user about the battery's state of health and state of charge and maintains up to a 95 percent accurate capacity measurement for the entire life of the battery. This information also prevents premature shutdown, increasing the longevity of the battery and end-equipment.

Key features and benefits of the bq34z110:

• Industry's first multi-cell scalable battery gauge to support a wide range of lead acid batteries (4 V to 64 V), including large-capacity batteries (1 Ahr to 65 Ahr and higher) and high-current applications (0 A to 32 A and higher).
• 95 percent accurate battery capacity measurement with TI's Impedance Track proprietary algorithm, which uses current, voltage measurements, temperature, and battery characteristics to determine battery state of charge, state of health, and capacity.
• Easy set-up configuration with application notes, user guide, and bq34z110EVM evaluation module.

Battery management for any battery chemistry
TI provides battery charge management and capacity-monitoring integrated circuits that meet the power requirements of any battery chemistry -- from the smallest coin-cell to the largest multi-cell battery pack. In addition to the bq34z110 gas gauge, TI's 10-A bq24650 and bq24450 charger ICs support battery charge management to multi-cell lead-acid batteries. TI also introduced the bq34z100 lithium-based multi-chemistry, multi-cell battery gas gauge, which supports a wide range of lithium-ion and lithium iron phosphate chemistries in 1- to 16-cell batteries.

Source: Texas Instruments

Published May 2013
