Hyundai Heavy Industries develops mini welding robot for shipbuilding

Hyundai Heavy Industries (HHI), the world's biggest shipbuilder and a leading industrial robot manufacturer, recently announced that it has developed mini welding robots for building ships.

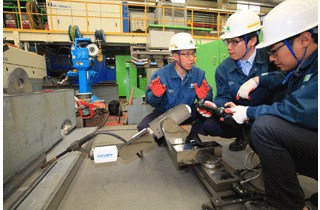

Hyundai Heavy's engineers test the newly developed mini welding robot.





The compact design of the welding machine, measuring 20 x 20 x 6 in. (50 x 50 x 15 cm) when its welding arm is retracted, can operate in confined areas inaccessible to human welders. The robot's six joints enable the machine to carry out almost all types of welding work at a similar speed to what is usually performed by a human welder.

Moreover, a powerful magnet on its body means that the machine can be attached to steel walls or ceilings. Weighing just 33 lb (15 kg), an operator can control three machines at the same time, increasing productivity threefold.

With the installation of software for steel cutting, blasting, and painting, the robot can perform these other shipbuilding roles. Hyundai Heavy also plans to improve the robots to be usable for building onshore/offshore facilities and construction equipment. The mobile welding robots are scheduled to be deployed en masse for shipbuilding by Hyundai Heavy in the second half of this year.

Hyundai Heavy, South Korea's largest industrial robot manufacturer, also manufactures 20 models of car assembly robots, 10 models of LCD handling robots, and is in the process of developing various types of surgical robots.

Source: Hyundai Heavy Industries

Published June 2013
