Solar mobile phone charging comes to rural Africa

Personal solar cell phone charging has come to rural Africa, and it's come in the form of rent-to-own equipment.

[Image: Azuri Technologies Ltd.]





ESCATEC, a Swiss product design, development, and manufacturing firm, has helped commercialize a novel solar power charging station design for its U.K.-based client, Azuri Technologies.

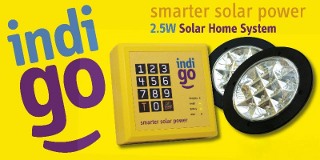

Called "Indigo," the system consists of a solar panel, two LED lamps, and a control unit with a charging point for a mobile phone. It has already won several major awards and is now in mass production in ESCATEC's Malaysian production facilities.

[Image: Azuri Technologies Ltd.]





[Image: Azuri Technologies Ltd.]





Reliable, quality illumination can change people's lives. Children can study at home, and their grades can improve. Shops can stay open past dusk. People can work in the evening to earn more money and improve the quality of their lives. Having a reliable source of electricity is similarly transformational -- especially as mobile phones are now a vital tool for communications, information, entertainment, and banking.

But in rural Africa, the typical source of light is a kerosene lamp, which is unhealthy, dangerous, and expensive. It is not uncommon for people to spend $2 a week on kerosene and a further $1 on mobile phone charging at a local (although sometimes quite far away) village charging station.

Since most homes do not have electricity, solar energy seems a prime contender for generating electricity for home use. But the challenge has been the upfront capital expense of a solar lighting system.

This is the problem Azuri aimed to solve by creating a pay-as-you-go business model for users. Customers pay a one-time install fee of around $10 and then purchase a weekly scratchcard for around $1.50, cutting their weekly energy spend by as much as 50 percent and benefitting from better quality illumination. The customer tops up their system with an Indigo scratchcard just as they would their mobile phone. A one-time top-up code is texted back and then input into the device's keypad, enabling it to be used as much as required for a week. After around 18 months, the unit is completely paid for and can be permanently unlocked.

"The vast distances and costs of installing traditional infrastructure in Africa have meant that mobile telephones have leapfrogged over the stage of landlines," says Nigel Preston, VP product management at Azuri. "Indigo provides the same leap for electricity over hardwired mains, using a mobile, solar-powered unit. Six hundred million Africans currently lack mains electricity, so whilst almost everyone has a mobile phone, they typically have to travel several kilometers to pay to get it charged. We needed a product that could withstand the extremes of temperature, be rugged and reliable, but, above all else, it had to be affordable. The build cost had to be as low as possible without compromising the quality, which is why we went to ESCATEC with our product. They offer a rare combination of top-notch design and development backed up with a high-volume manufacturing capability. Doing both means that they really do understand how to design for manufacture. They were able to view the entire project holistically, turning our prototype design into a commercial device, through component sourcing to mass production."

Gerhard Klauser, general manager at ESCATEC Switzerland, explains, "Our location in Switzerland enables us to have a close working relationship with Azuri, who are based in the U.K. Face-to-face meetings are easy to arrange, so they were able to be really 'hands on' at every stage as we optimized their design for manufacture. The initial low-volume production run was done in our facility here and then transferred to our factory in Malaysia for volume runs. As we deliberately use the same production equipment, this is a simple and very reliable transfer process that we have done many times for customers. This gives them a gateway to the high-volume, low labor-cost benefits of production in Asia but with a local contact to ensure that everything always runs smoothly."

"Indigo is a simple and effective way to transform the life of millions of people, and we are very proud to be making this happen," says Preston.

Source: ESCATEC

Published June 2013
