Army lab converting JP-8 fuel to hydrogen for portable electric power

By Joyce P. Brayboy, U.S. Army Research Laboratory

What if Soldiers could convert Jet Propellant 8 to clean hydrogen fuel for fuel cell applications anywhere and anytime they need it?

A small team of scientists at the U.S. Army Research Laboratory are collaborating with counterparts at the Communications-Electronics and the Tank Automotive Research, Development and Engineering Centers (TARDEC) to develop technology for lightweight, portable prototype systems that would convert Jet Propellant 8, commonly referred to as JP-8, to hydrogen on the spot.

"There is a growing demand for portable electrical power for both commercial and military applications," says Dr. Deryn Chu, fuel cell team leader. "Our challenge is, 'How can we remove the many impurities in JP-8 so it can be effective in a fuel cell?'"

Dr. Dat Tran, U.S. Army Research Laboratory electro-chemistry, shows two samples of materials that combine to extract sulfur from JP8, or Jet Propellant 8, that is a fuel widely used in the Army. [Photo credit: Joyce P. Brayboy]









JP-8 is widely used by the U.S. Army as a fuel for powering aircraft, engines of tactical ground vehicles, and electrical generators. It comes with a set of problems like the logistics resupply chain it requires and the high cost associated with force protection of convoys, Chu says.

The Pentagon's most-used jet fuel costs roughly $15 per gallon, but "... the cost multiplies to hundreds of dollars by the time you move it to and around operational locations," Chu says.

For the Army "... the smallest gain in efficiency is important. But fuel cells -- when the concept is fully developed -- may yield huge gains, potentially doubling the efficiency of diesel generators," he says.

The chance for a game-changing technology is why fuel reformation is one of three high-risk, high-reward projects that the laboratory is pushing toward in search of operational energy solutions for the battlefield. The other two are called "Smart Battlefield Energy on-Demand" and "Long-Lived Power."

Researchers already knew the value of fuel cells for increasing efficiency, as that kind of approach has been explored since the 1960s. They also knew of ways to convert the high energy density of hydrocarbons into hydrogen for fuel cells like the process that Bloom Energy and others use on the commercial market, says Dr. Zachary Dunbar, a team member who is exploring palladium membrane technology, using a rare metallic element as part of a purification system.

The challenge is developing a practical fuel reformation process for better energy conversion that would have to be portable, quick, and easy to use, he says.

Last year, Army Research Laboratory's research reached a milestone when they figured out a way to reduce the production costs associated with fuel reformation by using palladium membranes to purify hyrogen-rich reformate, Dunbar says.

In their work, scientists developed a new supported palladium membrane composite structure for purification technology to produce high-purity hydrogen from a feedstock of hydrocarbon fuel. Before this discovery, designing affordable, leak-free, and high-flux membranes was much more difficult, he says.

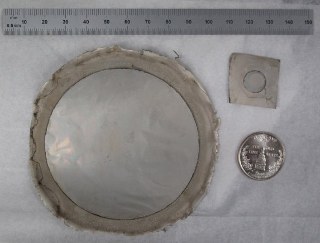

A large palladium membrane, like the one shown here, uses less than $1 worth of palladium metal, due to the ultrathin deposition processes used for its fabrication in the Army Research Laboratory Clean Room. [Photo credit: U.S. Army Research Laboratory]









"While it is a significant milestone, the research is in its early stages. Fuel reforming is a complex problem that we don't expect to solve quickly," Dunbar says.

The team tests materials that may reduce the sulfur concentration in JP-8. Dr. Dat Tran has tested at least 300 different combinations of materials during the last four years he has been investigating with the team, he says.

"JP-8 is a complicated and dirty fuel. The sulfur is a huge problem, because it can hurt the fuel cells," Tran says. "Sulfur has many different compounds that behave differently. The compounds in sulfur make it hard to find an agreeable material."

JP-8 is a logistical fuel for the Department of Defense under its one-fuel policy. It is a unique problem for the Army. Industry is focused on natural gas, Chu says.

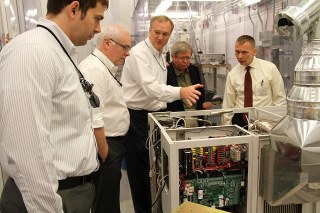

The U.S. Army Research, Development and Engineering Command's Communications-Electronics center Command, Power and Integration experts demonstrate a novel power unit for other defense experts in the industry. [Photo courtesy: CERDEC]









The U.S. Army Research, Development and Engineering Command's Communications-Electronics Center, Command, Power and Integration (CERDEC CP&I) experts are integral to the research because they transition mobile power systems from the lab to the field, says Dr. Terry Dubois, fuel reforming and combustion engineer at CERDEC.

Everything from man-worn to multikilowatt systems comes through CERDEC, he says.

CERDEC CP&I enables the quick transition of optimum capabilities to the warfighter in support of ongoing operations.

Army units often wind up in places overseas with no infrastructure and limited supplies. The Army needs to explore and develop high-efficient fuel cell systems to reduce logistical supply. Scientists continue to grapple with the question of the best way to rid JP-8 of its organic sulfur compounds after it is in theater, Chu says.

Published October 2013
