NASA developing (really long) legs for the Space Station's Robonaut 2 robot

NASA engineers are developing 4-ft-long climbing legs for the International Space Station's robotic crewmember Robonaut 2 (R2), marking another milestone in space humanoid robotics.

The legless R2, currently attached to a support post, is undergoing experimental trials with astronauts aboard the orbiting laboratory. Since its arrival at the station in February 2011, R2 has performed a series of tasks to demonstrate its functionality in microgravity.

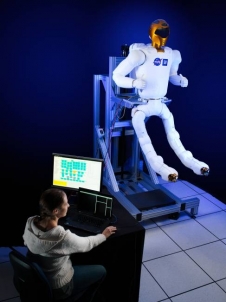

NASA's Robonaut 2 is shown with the newly developed climbing legs, designed to give the robot mobility in zero gravity. R2's new set of legs are ready to head to space early next year. [Image Credit: NASA]









These new legs, funded by NASA's Human Exploration and Operations and Space Technology mission directorates, will provide R2 the mobility it needs to help with regular and repetitive tasks inside and outside the space station. The goal is to free up the crew for more critical work, including scientific research.

"NASA has explored with robots for more than a decade, from the stalwart rovers on Mars to R2 on the station," says Michael Gazarik, NASA's associate administrator for space technology in Washington. "Our investment in robotic technology development is helping us to bolster productivity by applying robotics technology and devices to fortify and enhance individual human capabilities, performance, and safety in space."

Once the legs are attached to the R2's 3-ft 4-in. torso, the robot will have a fully extended leg span of 9 ft, giving it great flexibility for movement around the space station. Each leg has seven joints and an end effector where its foot would be. The end effector can handle different grabbers and tools. A vision system for the end effectors will be used to verify and eventually automate each limb's approach and grasp.

NASA engineers have built the legs, and R2 will be receiving them early this year. The new legs are designed for work both inside and outside the station, but upgrades to R2's upper body will be necessary before it can begin work outside the space station.

Technologies developed for Robonaut have led to new robotic devices for future spaceflight that also have direct applications here on Earth. For example, NASA is developing a robotic exoskeleton that could help astronauts stay healthier in space and also aid people with physical disabilities.

R5, next in NASA's Robonaut series of robots, competed in the Defense Advanced Research Project Agency's (DARPA) Robotics Challenge last December. During the challenge, robots demonstrated capabilities to execute complex tasks in dangerous, degraded, human-engineered environments.

The International Space Station serves as a test bed for future technologies that will be vital to human exploration as NASA explores asteroids and Mars.

Source: NASA

Published January 2014
