World's largest mining dump truck debuts with Siemens electric traction drive system on board

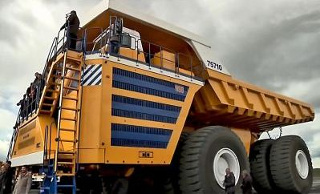

BelAZ-75710, the world's largest mining two-axle, all-wheel-drive dump truck, rolled out of the BelAZ plant (Zhodzina, Belarus) in late 2013 and is now being field tested as the biggest machine of its class. It features a record-breaking capacity of 450 metric tons -- 25 percent more than its nearest competitor.

To suit the demands of the gigantic hauling truck, Siemens developed a unique AC traction drive system, called the MMT500. The system is comprised of four 1,200-kW electric motors, two traction generators, three blowers, a brake resistor unit, and a control cabinet with two ELFA inverters.

As opposed to its predecessors, the new dumper is provided with eight wheels, each designed for about 100 tons of load. For this design, Siemens traction division experts chose to develop a reliable and powerful, all-wheel drive train with four electrical motors. The use of the all-wheel gear has opened up new possibilities of distributing tractive effort to both axles. Further, in case of failure of one of the driving gears, an emergency mode can be activated, which enables the dumper to get to the service station without being towed. The traction motors for the electric gear were manufactured at Siemens facilities in Nurnberg, Germany. The project was completed in a comparatively short term: the development process from ordering to commissioning took less than two years.

BELAZ-75710 is the first vehicle in the class of super-high-load trucks having a weight-carrying capacity of 450 tons. It is over 20 m long, nearly 10 m wide, and 8 m high. The turning diameter is about 20 m. The new dump truck has embodied the latest technological solutions ensuring its high efficiency, reliability, maneuverability, and smooth running as well as the driver's comfort and safety.

With a maximum speed of 64 km/h, BelAZ-75710 is in high demand in the mines of the Kuzbass region of the Russian Federation, as well as certain coal strip mines of Chile and North America. The first dump truck is due to set off to one of the open mines of the Kuzbass coal field.

Source: Siemens

Published March 2014
