LG Display rolls out 18-in. flexible and transparent OLED panels

LG Display rolled out a few surprises on July 10.

The Korean display technology innovator let the world see that it has developed an 18-in. flexible OLED panel that is rollable as well as an 18-in. transparent OLED panel. With these new panels, LG Display demonstrated that it has already acquired the fundamental technologies to lead the large-sized flexible and transparent display market.

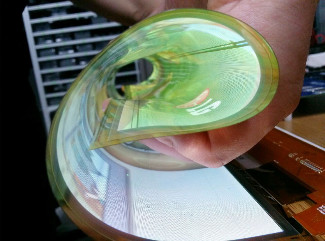

LG rollable display.





The flexible OLED panel has a high-definition resolution of 1,200 X 810 with almost 1 million mega-pixels. The panel's curvature radius is 30R, which means the panel can be rolled up to a radius of 3 cm without affecting the function of the display.

LG Display used high molecular substance-based polyimide film as the backplane of the flexible panel instead of conventional plastic to achieve the maximum curvature radius. The polyimide film also helped reduce the thickness of the panel to significantly improve its flexibility.

As for the transparent OLED panel, it boasts 30 percent transmittance, which was achieved by adopting the company's transparent pixel design technology.

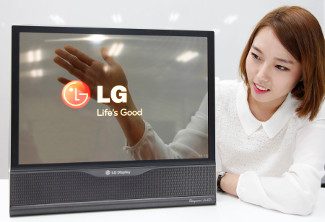

LG 18-in. transparent OLED panel.





LG Display has successfully lowered the haze of the panel, which is generated by using circuit devices and film components to a level of 2 percent. With this breakthrough development, the company has been able to greatly improve the technology level of the transparent display. Considering that the transmittance of existing transparent LCD panels is around 10 percent, this new panel offers significantly improved transmittance.

Source: LG Display

Published July 2014
