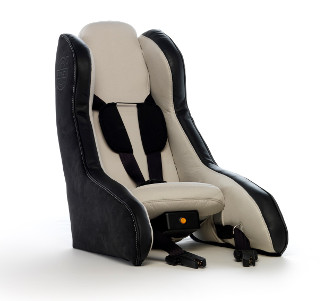

Volvo unveils revolutionary inflatable child seat concept

Children's car seats are historically bulky, hard to move, and tedious to mount -- and they are a pain to carry when empty. To solve these problems, Volvo Cars has designed a lightweight and inflatable rear-facing child seat concept using groundbreaking technology. The seat is safe, easy to pack and carry, and will enable parents to use it in many situations not practical with the seats on the market today.

Lawrence Abele, design manager at the Volvo Monitoring and Concept Center in Los Angeles, and the designer behind the new seat, had his two children in mind while designing the concept.

"For me, child safety is always the No. 1 priority, and when we lived abroad with two toddlers we had to haul bulky child seats through airports and then into taxis. For many, traveling with young children is a challenge. Any assistance to simplify the parents' life with young children is a great thing," says Abele.

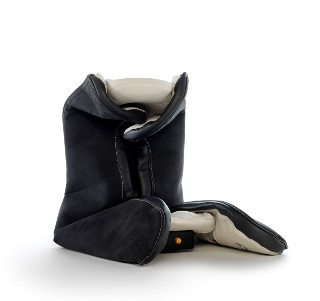

Inflates in 40 seconds
The inflatable seat has an innovative pump system that is silent and efficient in its construction. The seat inflates in less than 40 seconds and deflates with an integrated pump. The total weight of the seat is less than 11 lb, half the weight of a contemporary seat, and it is constantly online via Bluetooth, enabling a wide range of features, including remote-controlled inflation. It fits into a weekend bag together with other necessities for your child.

The concept presents new opportunities, for example: grandparents and friends who take care of your kids and need an ultra-mobile child seat. It is also very convenient when travelling by taxi, rental car, or bus -- situations where you historically had to rely on the safety measures available.

Unique drop-stitch fabrics
"We used a unique material called drop-stitch fabric when creating the prototype of the seat," says Maria Hansson, project manager at Volvo Monitoring and Concept Center in Los Angeles. "This fabric is very strong when inflated, as it can be brought to a very high internal pressure. It is a quite common technology in the boating industry and was originally developed by the military in an effort to develop inflatable airplanes."

Rear-facing is safest
The Inflatable Child Seat Concept faces the rear of the car, because that is the safest way for children to travel. A child's neck is not as strong as an adult's, because it is still developing physically. In a frontal impact collision, the head of a forward-facing car occupant is thrown forward, inducing great strain on the neck. Children, therefore, require special restraints and need to face the rear of the vehicle until at least 3 or 4 years of age.

Source: Volvo Cars

Published August 2014
