Oshkosh Defense shows off high-performance, production-ready Joint Light Tactical Vehicle

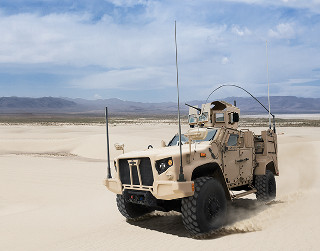

Just weeks after successfully completing the U.S. Government's Production Readiness Review (PRR) for the Joint Light Tactical Vehicle (JLTV) program, Oshkosh Defense showcased its JLTV solution -- the Light Combat Tactical All-Terrain Vehicle (L-ATV) -- at the Association of the United States Army (AUSA) 2014 Annual Meeting and Exposition in Washington, D.C., Oct. 13-15.

"Oshkosh Defense is ready for JLTV production," said U.S. Army Major General (Retired) John Urias, executive vice president of Oshkosh Corporation and president of Oshkosh Defense. "We are very confident about producing high-quality JLTVs on schedule and on budget, because no other OEM has launched more successful tactical wheeled-vehicle production programs than Oshkosh."

In 2013, the company produced its JLTV EMD prototypes on an active and proven production line, right alongside its MRAP All-Terrain Vehicle (M-ATV), Family of Heavy Tactical Vehicles (FHTV), Family of Medium Tactical Vehicles (FMTV), and other platforms. Using lean processes, flexible assembly lines, an experienced workforce, and rigorous quality checks, Oshkosh has successfully delivered a full range of military vehicles for decades.

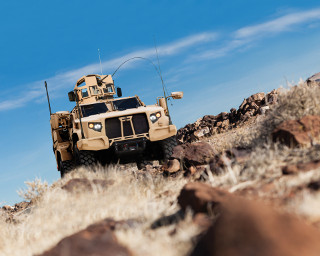

The Oshkosh L-ATV's lightweight, compact design leverages 10 years of research and development, as well as lessons from decades of field operating experience. L-ATV merges key design elements of highly survivable combat vehicles and off-road tactical vehicles to operate in a range of threat levels and terrains. Features include:

• The Oshkosh TAK-4i intelligent independent suspension system is the next generation of the world's most advanced, combat-proven suspension system, TAK-4. The TAK-4i system provides Warfighters with unprecedented maneuverability and a smoother ride to reduce fatigue after traveling the world's toughest terrains.
• The Oshkosh Core1080 crew protection system is an integrated system designed to absorb and deflect blast energy. It is a multi-faceted, fully integrated survivability system that applies advanced components and materials to save lives. The Core1080 approach has been proven on multiple vehicle platforms and credited for saving thousands of troops' lives over the past decade during missions outside-the-wire.
• Whether traveling over hazardous terrain or unpaved roads, the L-ATV's digitally controlled engine maintains steady, fuel-efficient power without sacrificing the acceleration and cruising speed that Soldiers and Marines need in high-threat environments. The vehicle's power-to-weight ratio is optimized to provide superior acceleration, mobility and speed on grade capability.
• L-ATV's Net Ready systems integration brings critical network and computing capabilities to a broader range of ground missions. L-ATV's advantage is based on a unique combination of vehicle OEM expertise and extensive in-house C4 and systems capabilities at Oshkosh. L-ATV was designed from day one as a "tactical vehicle system" that optimizes the user experience and ergonomics while maximizing overall system performance.

Oshkosh Defense's JLTV solution also features a variety of sophisticated on-board technologies, including an Interactive Electronic Technical Manual (IETM) and a vehicle Health Management System (HMS).

Source:Oshkosh Defense

Published October 2014
