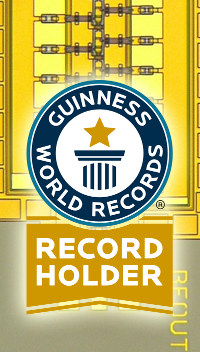

Circuit achieves 1 trillion cycles/sec, earns DARPA a Guinness World Record

Officials from Guinness World Records recognized DARPA's Terahertz Electronics program on Oct. 28, 2014, for creating the fastest solid-state amplifier integrated circuit ever measured. The 10-stage common-source amplifier operates at a speed of 1 terahertz (10¹² GHz), or 1 trillion cycles per second -- 150 billion cycles faster than the existing world record of 850 gigahertz set in 2012.

"Terahertz circuits promise to open up new areas of research and unforeseen applications in the sub-millimeter-wave spectrum, in addition to bringing unprecedented performance to circuits operating at more conventional frequencies," said Dev Palmer, DARPA program manager. "This breakthrough could lead to revolutionary technologies such as high-resolution security imaging systems, improved collision-avoidance radar, communications networks with many times the capacity of current systems, and spectrometers that could detect potentially dangerous chemicals and explosives with much greater sensitivity."

Developed by Northrop Grumman Corporation, the Terahertz Monolithic Integrated Circuit (TMIC) exhibits power gains several orders of magnitude beyond the current state of the art. Gain, which is measured logarithmically in decibels, similar to how earthquake intensity is measured on the Richter scale, describes the ability of an amplifier to increase the power of a signal from the input to the output. The Northrop Grumman TMIC showed a measured gain of 9 decibels at 1.0 terahertz and 10 decibels at 1.03 terahertz. By contrast, current smartphone technology operates at 1 to 2 gigahertz and wireless networks at 5.7 gigahertz

"Gains of six decibels or more start to move this research from the laboratory bench to practical applications -- 9 decibels of gain is unheard of at terahertz frequencies," said Palmer. "This opens up new possibilities for building terahertz radio circuits."

For years, researchers have been looking to exploit the tremendously high-frequency band beginning above 300 gigahertz where the wavelengths are less than 1 millimeter. The terahertz level has proven to be somewhat elusive, though, due to a lack of effective means to generate, detect, process, and radiate the necessary high-frequency signals.

Current electronics using solid-state technologies have largely been unable to access the sub-millimeter band of the electromagnetic spectrum due to insufficient transistor performance. To address the "terahertz gap," engineers have traditionally used frequency conversion -- converting alternating current at one frequency to alternating current at another frequency -- to multiply circuit operating frequencies up from millimeter-wave frequencies. This approach, however, restricts the output power of electrical devices and adversely affects signal-to-noise ratio. Frequency conversion also increases device size, weight, and power-supply requirements.

DARPA has made a series of strategic investments in terahertz electronics through its HiFIVE, SWIFT, and TFAST programs. Each program built on the successes of the previous one, providing the foundational research necessary for frequencies to reach the terahertz threshold.

Source: DARPA

Published November 2014
