Toyota surprises SEMA crowd with 850-hp Camry dragster

In drag racing terms, a "sleeper" is a car that looks as innocuous as possible, but has the means to blow the doors off the competition.

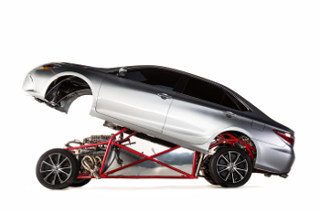

The attendees at this year's Specialty Equipment Market Association (SEMA) Show (Nov. 4-7) were shocked when emcee Rutledge Wood lifted the Sleeper Camry's body to reveal a purpose-built dragster putting out over 850 horsepower. The excitement was palpable as crowds of onlookers rushed to the Toyota booth to get a glimpse of the source of the ear-splitting growl that shook the central hall to its foundation.

"This is the most extreme build we've ever unveiled at SEMA," said Toyota Engagement Marketing and Motorsports National Manager Steve Appelbaum. "The transformation from seemingly stock Camry to full-blown racecar just shocks the senses. Chuck Wade and the team at Motorsports Technical Center did a truly spectacular job executing the vision of this project."

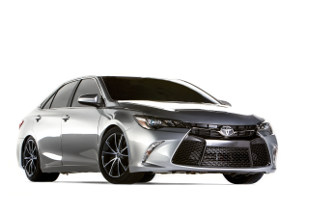

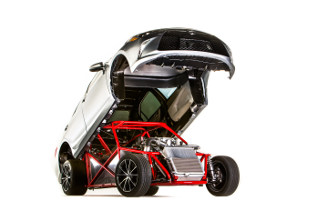

The build team extracted the outer shell of the all-new 2015 Camry and mated it to a full tube-frame chassis. Underneath the stylish Camry skin, it is all about brute force, rugged durability, and raw speed.

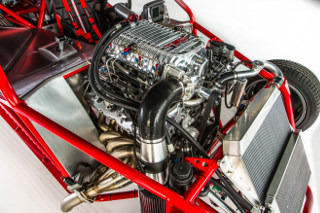

The builders tapped a Toyota Tundra for its 5.7-liter 3UR-FE V8 engine, transmission, rear axle, and electronics. The engine is blown with a TRD supercharger and also features a wet nitrous system. Directing the power to the asphalt are beefy DOT 335/30/18 drag racing tires, which are expected to help propel the Sleeper Camry to a blistering 9.80-second* quarter-mile time.

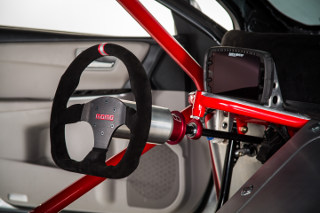

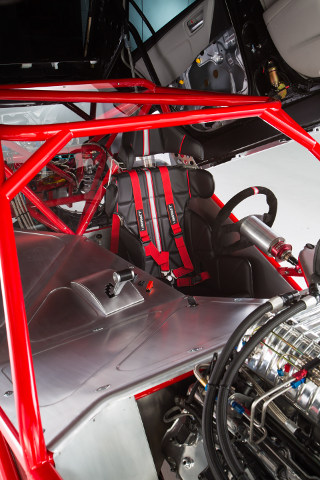

The build was completed in just 11 weeks. The attention to detail and craftsmanship are evident throughout the dragster -- from the fully functional stock doors to the custom-fabricated interior.

After its SEMA Show debut, the car will tour the country at select NHRA races.

* Estimated quarter-mile time

Sleeper Camry dragster highlights and some sponsors:
2015 Toyota Camry XSE
Magnuson Products
IPT Performance Transmissions
Plumbing: Goodridge Fluid Transfer Systems
TRD
Magnaflow
Autometer Digital Dash
Impact Racing safety harness
Battery: Optima Yellow Top
Goodyear tires
Nitrous Supply
Seat: Fast Ed's Interiors
The Polishing Shop
Forged pistons and connecting rods
Suspension: Strut front and 4-link live rear axle

Source: Toyota

Published November 2014
