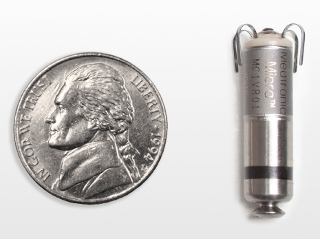

World's smallest pacemaker, a vitamin-size unit, ditches connector wires

Irish medical device maker Medtronic has received a CE Mark for its Micra Transcatheter Pacing System (TPS). What makes this little unit so special? It is the world's smallest pacemaker ... about the size of big vitamin. And it is placed directly on the heart and uses no connecting wires.

At less than one-tenth the size of traditional pacemakers, the Micra device provides the most advanced pacing technology available while being cosmetically invisible and small enough to be delivered with minimally invasive techniques through a catheter, and implanted directly into the heart. The Micra TPS does not require the use of wires, known as "leads," to deliver pacing therapy; rather, it is attached to the heart via small tines and delivers electrical impulses that pace the heart through an electrode at the end of the device.

"Unlike traditional pacemakers, the Micra TPS does not require leads or a surgical 'pocket' under the skin, so potential sources of complications are eliminated -- as are any visible signs of the device," says Philippe Ritter, M.D., cardiologist at Hopital Cardiologique de Haut Leveque and Centre Hospitalier Universitaire (CHU) Bordeaux. "While the Micra TPS is dramatically smaller, it is a fully self-contained pacemaker that still delivers the most advanced pacing technology available to patients."

Once positioned, the Micra TPS is attached to the heart wall and can be repositioned or retrieved, if needed. The device responds to patient activity levels by automatically adjusting therapy. Despite its miniaturized size, the Micra TPS has an estimated 10-year battery life and is approved for full-body MRI scans, providing patients with access to the most advanced imaging diagnostic procedures.

The device was awarded the CE Mark based on results from the first 60 patients (at three months) in the Medtronic Micra TPS Global Clinical Trial. The trial is ongoing and will continue to evaluate the safety and efficacy of the device through a single-arm, multi-center study that will enroll up to 780 patients at approximately 50 centers in 20 countries. Initial results from the Micra TPS Global Clinical Trial will be revealed for the first time at a late-breaking clinical trials session at the Heart Rhythm Society's 2015 Annual Scientific Sessions in May.

In the U.S., the Micra TPS is an investigational device and not yet approved for commercial use.

Pacemakers help restore the heart's rhythm by sending electrical signals to the heart to increase the heart rate, which can relieve the symptoms of bradycardia. Pacemaker therapy is the most common way to treat bradycardia (a slow heartbeat), with more than 1 million pacemakers implanted worldwide each year.* The Micra device is available for patients who benefit from single-chamber pacing; it paces one chamber of the heart: the right ventricle.

Source: Medtronic

*Mond HG, Proclemer A. The 11th world survey of cardiac pacing and implantable cardioverter-defibrillators: calendar year 2009 -- a World Society of Arrhythmia's project. Pacing Clin Electrophysiol. 2011 Aug;34(8):1013-27.

Published April 2015
