LiquidPiston signs $1M agreement with DARPA to develop fuel-efficient, lightweight rotary combustion engine tech for U.S. military

LiquidPiston, a developer of advanced combustion engine technology, recently announced that the company has entered into an agreement totaling $991,557 with the U.S. Defense Advanced Research Projects Agency (DARPA). LiquidPiston will use the funds to advance the development of its highly efficient, power-dense rotary internal combustion engine for portable and small-engine applications.

LiquidPiston's engines have only two primary moving parts: a shaft and a rotor. This design results in a compact size and low-vibration operation. Although they are rotary engines, LiquidPiston's engines are not Wankel engines; they are uniquely configured to adopt the company's patented thermodynamic cycle and its associated efficiency and low-noise benefits.

Under this agreement, LiquidPiston's primary objective is to demonstrate a pathway toward a rotary JP-8-fueled engine that has the potential to reduce fuel consumption by 50 percent and to increase power density by threefold compared to today's conventional heavy-fuel piston engines. JP-8, or Jet Propellant 8, is a kerosene-based jet fuel used widely by the U.S. military.

The potential impacts of increasing military engine fuel efficiency are significant:

• It could help save lives of soldiers who transport and protect fuel on the front lines and are subject to attack;
• It could help save money in fuel and transportation logistics costs;
• It could help extend mission times by allowing engine-powered equipment, like unmanned air vehicles (UAVs), to operate longer on the same amount of fuel;
• It could help lower the military's carbon footprint.

Additionally, increasing military engine power density could enable lighter, more compact equipment designs, further enhancing operational range and payload capabilities. "Today's diesel/JP-8 engines and generators are extremely heavy," says Dr. Nikolay Shkolnik, LiquidPiston's Founder and CTO, and Co-Principal Investigator of this DARPA effort. "For example, a typical 3-kW heavy-fuel generator weighs over 300 lb, requiring six people to move it around. LiquidPiston's engine technology may enable a JP-8 generator of similar output weighing less than 30 lb that could fit in a backpack."

The ultimate goal of the funded effort is to demonstrate a pathway to a heavy-fueled engine that could deliver above 50 percent average brake efficiency, 57 percent peak brake efficiency, and high power density (>1 hp/lb), using a test-bed environment. Such efficiency would reduce fuel consumption by approximately one-half compared to today's conventional piston engines. The effort will demonstrate key enabling components of the engine technology, as well as initial experiments with JP-8 fuel. As part of the agreement, LiquidPiston is investing 40 percent of the project costs.

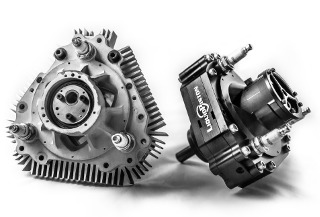

Early LiquidPiston prototypes have validated the principles and confirmed compression ignition of diesel and JP-8 fuels. LiquidPiston has built 70-hp and 40-hp compression ignition heavy-fuel engine alpha prototypes, and recently unveiled a 70-cm³ (3-hp to 5-hp) gasoline-powered, rotary four-stroke engine prototype, which would serve as the test platform for the work with DARPA.

Source: LiquidPiston

Published May 2015
