Twice as fast as a jet: U.S. Air Force confirms feasibility of Mach 5 SABRE engine concept

U.K.-based Reaction Engines Ltd. recently announced that analysis undertaken by the United States' Air Force Research Laboratory (AFRL) has confirmed the feasibility of the Synergetic Air-Breathing Rocket Engine (SABRE) engine cycle concept.

The analysis was undertaken by AFRL as part of a Cooperative Research and Development Agreement (CRADA) with the Air Force Research Laboratory's Aerospace Systems Directorate (AFRL/RQ). These investigations examined the thermodynamic cycle of the SABRE concept and found no significant barrier to its theoretical viability provided the engine component and integration challenges are met.

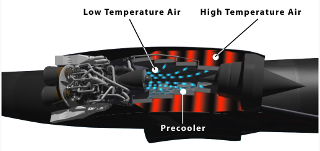

Airflow through the SABRE Engine. [Image: Reaction Engines Ltd.]





SABRE is an innovative class of aerospace propulsion that has the potential to provide efficient air-breathing thrust from standstill on the runway to speeds above Mach 5 (4,500 mph) in the atmosphere -- twice as fast as jet engines. The SABRE engine is capable of operating as a jet engine and a rocket engine, powering aircraft at up to five times the speed of sound within the atmosphere or directly into Earth orbit at 25 times the speed of sound. Its ground-breaking technology, an air pre-cooler, is designed to cool continuously the incoming airstream from over 1,000 deg C to -150 deg C in less than 1/100th of a second (six times faster than the blink of an eye), effectively doubling the current technical limits of jet engine speeds.

The concept has the potential to enable aircraft to fly anywhere on Earth in under 4 hours, or directly into space and back to deliver satellites and other cargo. SABRE-powered reusable space planes, such as the SKYLON concept, could dramatically cut the cost of launching satellites by as much as 100 times.

Through its ability to "breathe" air from the atmosphere, SABRE offers a significant reduction in propellant consumption compared to conventional rocket engines which have to carry their own oxygen, which is heavy. The weight saved by carrying less oxygen can be used to increase the capability of launch vehicles, including options for high-performance reusable launch vehicles with increased operational flexibility, such as horizontal take-off and landing. Additionally, the SABRE engine concept could potentially be configured to efficiently power aircraft flying at high supersonic and hypersonic speeds.

Reaction Engines Ltd. and AFRL are now formulating plans for continued collaboration on the SABRE engine; the proposed work will include investigation of vehicle concepts based on a SABRE-derived propulsion system, testing of SABRE engine components, and exploration of defense applications for Reaction Engines' heat-exchanger technologies.

AFRL/RQ program manager Barry Hellman stated: "The activities under the CRADA have allowed AFRL to understand the SABRE engine concept, its pre-cooler heat exchanger technology, and its cycle in more detail. Our analysis has confirmed the feasibility and potential performance of the SABRE engine cycle. While development of the SABRE represents a substantial engineering challenge, the engine cycle is a very innovative approach and warrants further investigation. The question to answer next is what benefit the SABRE could bring to high-speed aerospace vehicles compared to other propulsion systems. Although application of the SABRE for single-stage to orbit space access remains technically very risky as a first application, the SABRE may provide some unique advantages in more manageable two-stage to orbit configurations. Furthermore, the heat exchanger technology also warrants further investigation for applications across the aerospace domain."

Source: Reaction Engines Ltd.
