New and durable Intel-Micron memory technology is 1000x faster than flash

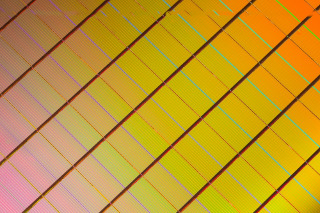

3D Xpoint technology is up to 1000x faster than NAND flash, and an individual die can store 128 Gb of data.





Intel and Micron Technology have unveiled 3D XPoint technology, a non-volatile memory that has the potential to revolutionize any device, application, or service that benefits from fast access to large sets of data. Now in production, 3D XPoint [pronounced "cross point"] technology is a major breakthrough in memory process technology and the first new memory category since the introduction of NAND flash in 1989.

3D XPoint technology combines the performance, density, power, non-volatility, and cost advantages of all available memory technologies on the market today. The technology is up to 1,000 times faster and has up to 1,000 times greater endurance than NAND, and is 10 times denser than conventional memory.

"One of the most significant hurdles in modern computing is the time it takes the processor to reach data on long-term storage," said Mark Adams, president of Micron. "This new class of non-volatile memory is a revolutionary technology that allows for quick access to enormous data sets and enables entirely new applications."

As the digital world quickly grows, 3D XPoint technology can turn this immense amount of data into valuable information in nanoseconds. For example, retailers may use 3D XPoint technology to identify fraud detection patterns more quickly in financial transactions; healthcare researchers could process and analyze larger data sets in real time, accelerating complex tasks such as genetic analysis and disease tracking.

The performance benefits of 3D XPoint technology could also enhance the PC experience, allowing consumers to enjoy faster interactive social media and collaboration as well as more immersive gaming experiences. The non-volatile nature of the technology also makes it a great choice for a variety of low-latency storage applications since data is not erased when the device is powered off.

Following more than a decade of research and development, 3D XPoint technology was built from the ground up to address the need for non-volatile, high-performance, high-endurance, and high-capacity storage and memory at an affordable cost. The innovative, transistor-less cross point architecture creates a three-dimensional checkerboard where memory cells sit at the intersection of word lines and bit lines, allowing the cells to be addressed individually. As a result, data can be written and read in small sizes (unlike flash), leading to faster and more efficient read/write processes.

Look for products incorporating this technology to roll out in 2016.

Source: Intel

Published August 2015
