Zippered bomb-proof lining tested to contain explosion in luggage hold of aircraft

A bomb-proof lining developed by an international team of scientists, including academics from the University of Sheffield in England, has successfully contained blasts in a series of controlled explosions in the luggage hold of a Boeing 747 and an Airbus 321.

The Fly Bag, which lines an aircraft's luggage hold with multiple layers of novel fabrics and composites and can be zipped and unzipped, was tested under increasing explosive charges on unused planes at Cotswolds Airport, near Cirencester, U.K., in late July.

Using this technology, the tests have demonstrated that a plane's luggage hold may be able to contain the force of an explosion should a device concealed within a passenger's luggage be detonated during a flight. This would mitigate damage to the plane and help keep passengers safe.

After the tests, explosives were placed in the aircraft without the lining to show the damage that could be caused.

Editor's note: To see some excellent pictures from the blast test, go to the BBC article here.

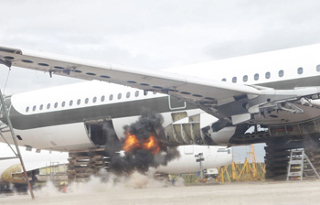

A controlled explosion without Fly Bag in the hold.





Disasters such as the Lockerbie bombing in 1988 drove the need for this kind of invention, as well as an incident in which a printer cartridge bomb was found onboard a cargo plane at East Midlands Airport in 2010.

Fundamental to the design of the bag is a combination of fabrics that have high strength and impact and heat resistance. The fabrics include Aramid, which is used in ballistic body armor.

"Key to the concept is that the lining is flexible, and this adds to its resilience when containing the explosive force and any fragments produced," said Andy Tyas, of the Department of Civil and Structural Engineering, who is leading the research at the University of Sheffield.

"This helps to ensure that the Fly Bag acts as a membrane rather than as a rigid-walled container which might shatter on impact."

"We have extensively tested Fly Bag prototypes at the University of Sheffield's blast-testing laboratory, but the purpose of these tests was to investigate how the concept works in the confines of a real aircraft, and the results are extremely promising."

Hardened luggage containers (HULD) have been developed to deal with bombs hidden in passenger luggage, but these containers are heavier and more costly than conventional equivalents.

A European consortium working on the Fly Bag project includes Blastech, a spin-out company from the University of Sheffield, as well as partners from Greece, Spain, Italy, Germany, Sweden, and the Netherlands.

The technology could either be something that becomes compulsory for all airlines to use if the law was changed or could be used by airlines responding to particular threats.

It has also been adapted for use in cabin holds within the plane if the airline crew spot something they think might be a threat and could be a risk to passengers.

What the bag is made of
The Fly Bag features multiple layers of novel fabrics, composites, and coatings and is designed to be filled with passenger luggage and then placed in the hold of a plane. If there were a bomb in the luggage in the bag which exploded during the flight, the resulting blast would be absorbed by the bag due to its complex fabric structure, preventing damage to the plane.

Fundamental to the design of the bag is the internal elastomeric coating and impregnation of fabric with Shear Thickening Fluids (STF).

Elastomers are very low-stiffness, high-failure strain materials, often used as adhesives, sealants, or in structures where high strains are expected. An elastomer was developed to provide a gas seal in the bag at very high strain rates and very high deformations, whilst resisting flame and heat.

STFs work by increasing in viscosity in response to impact. A simple STF can be made from mixing corn flour with water. Providing quantities are correct, it would be possible to roll this simple STF into a ball that will bounce on hard surfaces but return to a fluid once it is left alone.

Under normal circumstances, the particles in STFs repel each other slightly, however following sudden impact, the extra energy in the system proves stronger than the repulsive forces, causing the particles to clump together in structures called hydroclusters, which bump into each other, consequently thickening the fluid.

This unusual behavior of STFs has already generated significant commercial interest, and STFs are being considered to improve body armor designed to protect the wearer from weapons such as knives and bullets.

In the case of the Fly Bag, the STF is coated onto the yarn of the fabric, and as the fabric comes under strain, shearing forces between the yarns cause the STF to thicken, temporarily increasing the stiffness of the fabric, reducing the total deformation.

Source: University of Sheffield

Published August 2015
