Using 3D-printed inserts for quick-change molds creates new price/performance benchmarks for injection molding

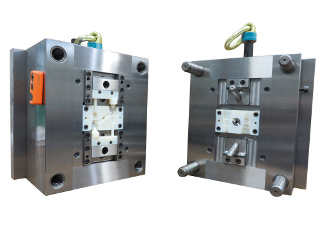

Worldwide moldmaker HASCO has developed a rapid, cost-efficient method to produce low volumes of injection-molded prototypes by integrating Stratasys 3D printing with its K3500 quick-change mold system.

Using this clever approach, molders can quickly change between inserts for different products, enabling them to produce low volumes of injection-molded parts cost effectively for samples, prototypes, and small production runs.

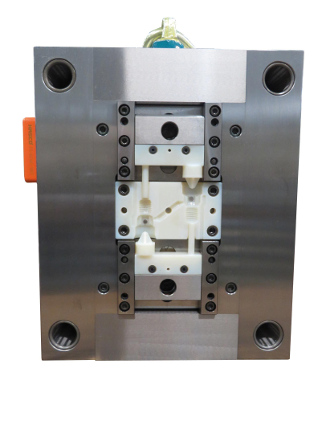

HASCO 3D printed the inserts in Stratasys' ultra-tough Digital ABS material using the Objet500 Connex Multi-material 3D Production System. With a 3D-printed mold insert taking only hours to produce, molders can make design modifications to the product in a fraction of the time and for a fraction of the cost of conventional tooling methods.

"This best-of-both-worlds technique is the future of prototype and low-volume production," says Dirk Paulmann, executive vice president, sales & business development, at HASCO.

Unique approach put to the test

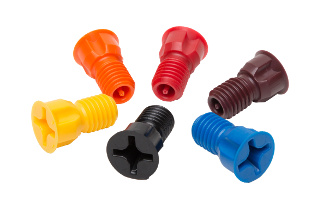

When producing a sealing plug for its industry-standard A8001 clamping fixture, HASCO identified that the walls of the ABS plastic sealing screw would need to be 12-mm thick to seal the large number of threaded holes. Given this geometry, it was clear that that the screw could not be produced using the conventional injection-molding process. With the level of intricacy enabled by Stratasys PolyJet 3D printing, HASCO redesigned the screw with a reduced wall thickness and subsequently 3D printed a mold insert to the new specifications in order to test the integrity of the design before mass production.

"The speed of the process was incredible," says Paulmann. "Using our Objet500 Connex 3D Production System, we produced the parts of the cavity that shape the polymer -- such as the inserts and slides -- in just six hours compared to the 24 hours it previously took. We then worked with prototyping specialists Canto Ing. GmbH, Ludenscheid (Germany) to finish the 3D-printed inserts and test the sample mold. We were delighted with the result; the first sealing screws were produced ready for mounting on our clamping unit in a record time of only four days."

"The project has proved that it is possible to implement this innovative rapid-technology application within the injection-molding process," says Paulmann. "For the production of low-volume prototypes in the final product material, the ability to quickly change molds with a 3D-printed cavity offers a rapid, low-cost alternative to conventional methods."

Source: Stratasys

Published September 2015
