Students build Singapore's first personal flying machine

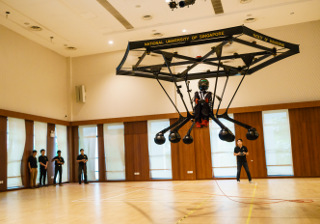

A team of eight engineering students from the National University of Singapore (NUS) has successfully built Singapore's first personal flying machine, dubbed "Snowstorm." Comprising an intricate design of motors, propellers, and inflated landing gear set within a hexagonal frame, Snowstorm is an electric-powered aircraft capable of vertical takeoff and landing that can be controlled by a single person seated within it.

The personal flying machine was built over a one-year period, under the auspices of FrogWorks, a collaboration between NUS Faculty of Engineering's Design-Centric Program (DCP) and the University Scholars Program (USP). FrogWorks engages students in the study, design, and construction of clean leisure craft, a rapidly growing segment of green technology. Previous FrogWorks projects include the conversion of a sport motorcycle and a yacht from gasoline to electric propulsion.

Personal flight -- from fantasy to reality
In its current prototype, the personal flying machine can bear the load of a single (diminutive) person up to 155 lb for a flight time of about 5 minutes. Rather than a mode of transportation, the team envisions this more as an electric aircraft for personal use in a large indoor space for recreational fun.

"A common trope in popular science fiction is the projection of humans flying on our own -- think the "Jetsons," or even "Back to the Future." NUS' Snowstorm shows that a personal flying machine is a very real possibility, primarily as a means to fulfil our dreams of flying within a recreational setting," said Dr Joerg Weigl, one of two supervisors of the project, who is from the Design-Centric Program at the NUS Faculty of Engineering.

Snowstorm's features and capabilities
The NUS team spent two semesters designing and building the flying machine, combining their skills and expertise across different fields of engineering such as computer engineering, electrical engineering, and mechanical engineering. Aside from the construction of the physical frame, the students also designed and implemented the craft's electronic control and stabilization system, a pilot safety system, as well as an electric energy management and supply system where the three batteries that power the craft can function independently in the event any of the batteries malfunction.

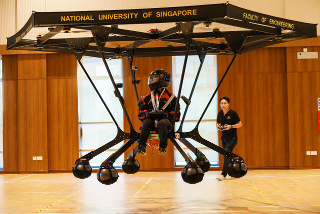

The electric flying machine sports 24 motors, each driving a 30-in.-diameter propeller with 2.2 kW of power. Its hexagonal frame is made of anodized aluminum beams, carbon fiber plates, and tubes with Kevlar ropes. The pilot seat is positioned at the center of the machine, its weight supported by six landing gear legs, the bottom of which is an inflated ball that adsorbs shock when landing. Three independent rechargeable lithium battery sets provide a total power of 52.8 kW.

To ensure pilot safety, the seat is installed with a five-point harness that secures the pilot to the center of the machine. The flight control system allows the pilot to adjust thrust, pitch, roll, and yaw of the craft. In addition, Snowstorm provides a variety of automated flight modes familiar to operators of unmanned aerial vehicles (UAVs), including altitude hold, loiter, and position modes. For safety, the team has also worked in a separate switch that can be controlled from the ground to end the flight and bring the machine to a landing, should the pilot lose control of the machine.

"The toughest part of this engineering challenge was ensuring a good thrust-to-weight ratio to allow the craft to lift a person into the air," said Shawn Sim, a third-year NUS Engineering student who worked on the project. "At every stage of our design, we constantly had to balance and consider tradeoffs between the types of materials, their characteristics, and weight. In some instances, we even 3D-printed parts, such as our landing-gear mount, just so we can have a customized and optimal fit."

The team first tested their design on a smaller 1/6-scale prototype before proceeding with the massive task of building the current prototype. Using fasteners and non-permanent connections for the beams, the NUS team also designed the flying machine so it can be dismantled, transported, and reassembled easily.

"Recent advances in motors and battery technology have made it possible for us to literally take to the skies," said Associate Professor Martin Henz of the University Scholars Program and the School of Computing at NUS, who also supervised the project. "The NUS team will continue to fine-tune Snowstorm, working on mechanical safety measures, propeller and motor configurations, and control software and hardware to achieve the high levels of safety, simplicity, and performance required for recreational use by the general public." The NUS team hopes the improvements in the coming year will bring Snowstorm closer to commercialization.

Source: NUS
