Demand for quantum dots projected to increase 20-fold over next decade

By Dr. Guillaume Chansin, Senior Technology Analyst, IDTechEx

Ever since Sony launched the first television with quantum dots in 2013, these highly engineered materials have been in the spotlight. In the new report "Quantum Dots 2016-2026: Applications, Markets, Manufacturers," IDTechEx Research forecasts that shipment of quantum dots will increase significantly in the next 10 years.

Quantum dots are nanocrystals of semiconductor. What makes them so attractive is that their optical properties can be tailored for various applications. Inside a TV, they help deliver colors that are more faithful to the original image.

It took a long time for quantum dots to reach large-scale commercialization. The first startup, Quantum Dot Corporation, was founded in 1998 to develop new bio-molecular markers. The idea was to use quantum dots to replace the fluorescent tags often used in life science. When the company was acquired in 2005 by Invitrogen (which is now part of Thermo Fisher), it looked as if quantum dots were ready for the big time. However, they never became mainstream in life science, due in part to the fact that they were very expensive. Today, quantum dots are used in research labs to develop advanced sample imaging.

Other companies believed quantum dots were the ideal materials to improve colors in display and lighting. In 2009, Nexxus Lighting commercialized the first LED light bulb with quantum dots. But the world was not ready to switch to LED lighting, and the product was quickly discontinued. The future of quantum dots looked uncertain, so when Sony adopted the technology in their LCD TV it gave a strong confidence boost to the industry.

There are now several models of TVs and monitors based on quantum dots on the market. Most notably, Samsung has bet big on quantum dots to compete against the OLED (organic light-emitting diode) TVs from rival LG.

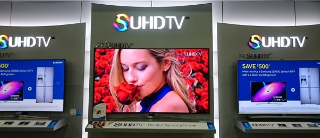

Fig 1. Samsung is heavily promoting a range of top-end TVs made with quantum dots. [Photo source: G. Chansin].





Applications in display panels are now driving the sales of quantum dot materials. According to the IDTechEx forecast, demand for quantum dots will grow from less than 100 kg in 2015 to over 2 metric tons in 2026, which is more than a 20-fold increase. Components for LCDs will remain the biggest market segment, but other applications will emerge, such as quantum dot LED (QLED), photovoltaic, and sensors.

QLED is a promising technology that uses quantum dots as electroluminescent materials, in much the same way as OLED. However, it will take several years for this technology to be commercialized. Applications in image sensors may come to market much faster. A company called InVisage has developed a way to deposit quantum dots on a silicon chip to make hybrid CMOS image sensors. The start-up company recently announced their first product, a 13-megapixel image sensor for mobile devices.

The difference between OLED and quantum dot (QD) technology
According to LG, "Since LCD cannot emit light itself, it needs a light source such as the backlight. An LCD with an LED backlight uses RGB colors (red, green, and blue) to produce white. The latest-technology LED LCD uses blue LEDs, coated with a yellow phosphor, to create white light.

"Quantum dot (QD) TV is an improved version of this. Instead of using blue LEDs with yellow phosphor, it uses QD particles to create white. Quantum dot technology absorbs blue light and transfers it to red and green to create white color. Through this process, it can produce accurate colors.

"An OLED display is a display comprised of an organic compound that emits light in response to an electric current. Each pixel can emit light itself, so it does not have a problem of light from the backlight leaking through the display. Hence, OLED is very different from QD."

More insights
In "Quantum Dots 2016-2026: Applications, Markets, Manufacturers," IDTechEx Research finds that the market for quantum dot devices and components will grow to over $11 billion by 2026.

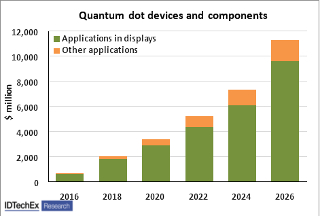

Fig 2. Quantum dots will enable a market worth $11 billion by 2026. Source: IDTechEx Research report www.IDTechEx.com/qd.





For comprehensive analysis of quantum dots, their applications, industry players, and market forecasts, see www.IDTechEx.com/qd.

Source: IDTechEx

Published December 2015
