Can your smartwatch give away your ATM PIN?

Wearable devices have the potential to track your hand movements and give up your passwords, according to new research.

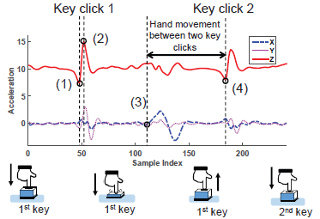

[Figure detail from "Friend or Foe?: Your Wearable Devices Reveal Your Personal PIN"]





In the paper "Friend or Foe?: Your Wearable Devices Reveal Your Personal PIN," scientists from Binghamton University and the Stevens Institute of Technology in New York combined data from embedded sensors in wearable technologies, such as smartwatches and fitness trackers, along with a computer algorithm to crack private PINs and passwords with 80 percent accuracy on the first try and more than 90 percent accuracy after three tries.

Yan Wang, assistant professor of computer science within the Thomas J. Watson School of Engineering and Applied Science at Binghamton University is a co-author of the study along with Chen Wang, Xiaonan Guo, Bo Liu, and lead researcher Yingying Chen from the Stevens Institute of Technology. The group is collaborating on this and other mobile device-related security and privacy projects.

"Wearable devices can be exploited," said Wang. "Attackers can reproduce the trajectories of the user's hand then recover secret key entries to ATM cash machines, electronic door locks, and keypad-controlled enterprise servers."

Researchers conducted 5,000 key-entry tests on three key-based security systems, including an ATM, with 20 adults wearing a variety of technologies over 11 months. The team was able to record millimeter-level information of fine-grained hand movements from accelerometers, gyroscopes, and magnetometers inside the wearable technologies regardless of a hand's pose. Those measurements lead to distance and direction estimations between consecutive keystrokes, which the team's "Backward PIN-sequence Inference Algorithm" used to break codes with alarming accuracy without context clues about the keypad.

According to the research team, this is the first technique that reveals personal PINs by exploiting information from wearable devices without the need for contextual information.

"The threat is real, although the approach is sophisticated," Wang added. "There are two attacking scenarios that are achievable: internal and sniffing attacks.

"In an internal attack, attackers access embedded sensors in wrist-worn wearable devices through malware. The malware waits until the victim accesses a key-based security system and sends sensor data back. Then the attacker can aggregate the sensor data to determine the victim's PIN. An attacker can also place a wireless sniffer close to a key-based security system to eavesdrop sensor data from wearable devices sent via Bluetooth to the victim's associated smartphones."

The findings are an early step in understanding security vulnerabilities of wearable devices. Even though wearable devices track health and medical activities, their size and computing power doesn't allow for robust security measures, which makes the data within more vulnerable to attack.

The team did not have a solution for the problem in the current research, but did suggest that developers, "inject a certain type of noise to data so it cannot be used to derive fine-grained hand movements, while still being effective for fitness-tracking purposes such as activity recognition or step counts."

The team also suggests better encryption between the wearable device and the host operating system.

The paper was published in the proceedings of the 11th annual Association for Computing Machinery Asia Conference on Computer and Communications Security (ASIACCS) in Xi'an, China, on May 30 to June 3. It also received the "Best Paper Award" at the meeting.

The research was funded, in part, by a grant from the National Science Foundation and the United States Army Research Office.

Source: Binghamton University

Published July 2016
