DARPA's diesel-powered unmanned airplane sets world endurance record

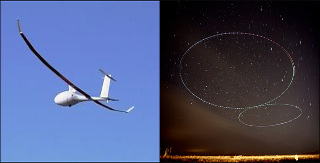

The Vanilla Aircraft VA001, a small diesel-powered airplane under development through DARPA (left), flew for 56 hours recently over Las Cruces, NM (right), setting a new world record for flight duration for its weight class. The airplane is designed to ultimately carry a 30-lb payload at 15,000 ft for up to 10 days without refueling









Some boundaries for long-endurance flight were broken this month when a DARPA-backed small business effort launched a uniquely designed, combustion-powered unmanned aircraft that stayed aloft for more than two days and two nights. The flight was terminated several days ahead of schedule because of incoming weather. But the craft -- built by Vanilla Aircraft of Falls Church, VA -- landed safely with more than half its fuel still onboard, suggesting it is capable of setting additional records for powered flight in its weight and power class and could ultimately offer important new capabilities to ground forces and others.

Small unmanned aerial vehicles (UAVs) are an increasingly important means for military forces -- especially small dismounted units -- to bring extra communications or intelligence, surveillance, and reconnaissance (ISR) capabilities to the field. Current designs, however, offer relatively limited range and flight endurance; additionally, their need for frequent refueling, specialized launch and recovery equipment, and regular maintenance often limit them to flying from fixed bases close to the front lines.

The VA001 started its historic flight on the morning of November 30, 2016, at New Mexico State University's Unmanned Air Systems Flight Test Center near Las Cruces International Airport. For nearly 56 hours, the propeller-driven plane flew at an altitude between 6,500 ft and 7,500 ft above sea level, averaging 57 knots before landing on the afternoon of December 2, 2016. It carried 20 lb of actual and simulated payload and was a further step for the VA001 toward demonstrating the system's objective performance of carrying a 30-lb payload for 10 days at an altitude of 15,000 ft. The payload included a NAVAIR-provided relay and operated continuously throughout the flight to demonstrate functionality out to the maximum range. The airplane also carried a NASA-provided multispectral imaging payload as a demonstration of Earth science and agricultural remote sensing.

A representative from the National Aeronautic Association -- the organization that verifies and tracks flight-related world records -- certified the flight as achieving the world duration record for combustion-powered UAVs in the 50-kg to 500-kg subclass (FAI Class U-1.c Group 1). Moreover, the flight was the fourth longest for any unmanned airplane and the 11th longest for an airplane of any type (manned or unmanned, solar or fuel-powered).

"This record-breaking flight demonstrated the feasibility of designing a low-cost UAV able to take off from one side of a continent, fly to the other, perform its duties for a week, and come back -- all on the same tank of fuel," said Jean-Charles Ledé, DARPA program manager. "This capability would help extend the footprint of small units by providing scalable, persistent UAV-based communications and ISR coverage without forward basing, thereby reducing personnel and operating costs. We're very pleased with what the Vanilla team has accomplished."

Vanilla Aircraft is also planning a groundbreaking role for the VA001 in commercial applications, especially in agriculture. "The VA001 would be a cost-effective option for widespread and regular low-level surveying. We could fill a wide cost and payload capability market gap between small electric and large military unmanned aircraft, which is perfect for many commercial applications," says co-founder and program manager Jeremy Novara.

Vanilla is currently exploring strategic partnerships and equity financing to expand into this market.

Sources: DARPA, Vanilla Aircraft

Published January 2017
