1,000 fps: New Sony vision sensor is 33x faster

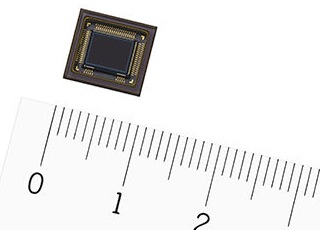

Sony Corporation has just announced the release of its new IMX382 high-speed vision sensor that enables detection and tracking of objects at 1,000 frames per second (fps). Sony will begin shipping samples in October 2017.

This vision sensor features a stacked configuration with a back-illuminated pixel array and signal-processing circuit layer. The circuit layer is equipped with image-processing circuits and a programmable column-parallel processor, delivering high-speed target detection and tracking. This configuration enables high-sensitivity imaging thanks to the back-illuminated pixel array, with target detection and tracking. The new sensor uses information such as color and brightness obtained from pixels to detect objects, then extracts the object's centroid, moment, and motion vector, and finally outputs the information from the vision sensor in each frame.

This vision sensor has achieved imaging, target detection, and tracking at 1,000 fps on a single chip. This not only expands the scope of application, but delivers new value that was difficult to obtain with conventional systems.

On past systems equipped with a 30-fps processing image sensor, it was not always possible to capture fast-moving objects and/or phenomena. At 1,000 fps, approximately 33 times faster in imaging speed than conventional chips, the new product can capture fast-moving objects and detect objects from image information, while using high-speed processing to extract information such as centroid, moment, and motion vector. Because the processing results can be output from the sensor in each frame, feedback to the system is faster than conventional methods. Delays in detecting anomalies or malfunctions in production lines at factories and other places can produce fatal results. However, this vision sensor makes it possible to instantly capture such events, so that orders can be issued quickly to stop the system.


VIDEO: Sony IMX382 high-speed vision sensor.

Conventional industrial robots are normally operated by specifying motion coordinates using a program. Utilizing the high-speed tracking functionality of this vision sensor, however, enables real-time feedback to robots, enabling autonomous robot operation that is responsive to the movement and status of objects. This helps make robot teaching more efficient, contributing to improved productivity.

On conventional systems, the image processing required for detecting and tracking of objects has to be carried out at a later stage (on a computer or other computing device). This vision sensor changes all that by delivering imaging, target detection, and tracking image processing on a single chip. Not only does this make the later-stage devices more compact and help to save overall system power; it also expands the new system development potential by eliminating certain physical limitations.

Timed with the sample shipping in October 2017, Sony will also be providing evaluation kits. The evaluation kit consists of the camera and control software, making it easy to evaluate the sensor in diverse customer environments.

Source: Sony

Published May 2017
