Who knew machine shakes were such a problem? 3D printing gets a turbo boost from U-M technology

A new algorithm allows 3D printers to "read ahead" of their programming to boost speeds by proactively dealing with machine shaking.

By James Lynch, University of Michigan Engineering

University of Michigan (U-M) Engineering researchers have developed filtered b-spline (FBS) algorithms to speed up consumer 3D printers without sacrificing quality. The research was conducted in the Smart and Sustainable Automation Research Lab at the University of Michigan College of Engineering under associate professor of mechanical engineering Chinedum Okwudire. The research was led by PhD candidates Deokkyun Yoon and Molong Duan.

A major drawback to 3D printing -- the slow pace of the work -- could be alleviated through a software algorithm developed at the University of Michigan. The algorithm allows printers to deliver high-quality results at speeds up to two times faster than those in common use, with no added hardware costs.

One of the challenges for today's 3D printers lies in vibrations caused as they work. A printer's movable parts, particularly in lightweight desktop models, cause vibrations that reduce the quality of the item being produced. And the faster the machine moves, the more vibrations are created.

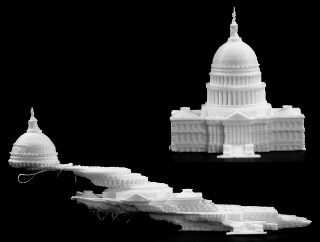

On the bottom, vibrations from the 3D printer caused the printhead to offset multiple times when the printer was pushed to ~2X speed. On the top, the new U-M algorithm was applied to the printer, enabling a successful print. Both U.S. Capitol replicas were printed on a HICTOP Prusa i3 3D printer. [Photo: Evan Dougherty, Michigan Engineering]









"Armed with knowledge of the printer's dynamic behavior, the program anticipates when the printer may vibrate excessively and adjusts its motions accordingly," said Chinedum Okwudire, an associate professor of mechanical engineering who directs U-M's Smart and Sustainable Automation Research Lab.

To ensure details are reproduced accurately, the machines are operated slowly. This snail's pace is one of the factors that has prevented the technology finding a broader audience.

Okwudire cited statements made last year by one 3D-printing company executive about the issues holding the industry back.

"We're just waiting for the next evolution of the technology," Simon Shen, CEO of XYZPrinting, told TechCrunch last year. "If they can do it much faster, more precise and easier, that will bring more people to 3D printers. Not waiting for four to six hours for a print, but 40 to 60 minutes."

VIDEO: Algorithms for faster 3D printing.

In explaining how his algorithm works, Okwudire uses the example of someone trying to deliver a speech in a large hall. To reach ears in the farthest rows, that speaker will have to shout.

Should someone produce a megaphone, and the speaker still continues to shout, their voice will be overly amplified and cause the audience to squirm. Using the megaphone in a normal voice, however, produces the right clarity and volume.

"Our software is like that person who realizes their voice is going to be overly amplified," Okwudire said. "It acts preemptively because it knows that the behavior of the printer is going to be ahead of time."

"Eventually, one of the places we would want to see the algorithm applied is in the firmware -- the software that runs on the printer itself," he said. "That way, it will be integrated with the printers, regardless of the size."

Okwudire said his software can also be used on a variety of industrial-grade machines that suffer from similar limitations due to vibrations.

The journal Mechatronics recently published the lab's findings in a paper titled: "A limited-preview filtered B-spline approach to tracking control -- with application to vibration-induced error compensation of a 3D printer." You can read the paper here.

Published November 2017
