Virtual-reality controller included: Toyota unveils third-generation humanoid robot T-HR3

Toyota Motor Corp. has just revealed T-HR3, the company's third-generation humanoid robot. Toyota's latest robotics platform, designed and developed by Toyota's Partner Robot Division, will explore new technologies for safely managing physical interactions between robots and their surroundings, as well as a new remote maneuvering system that mirrors user movements to the robot.

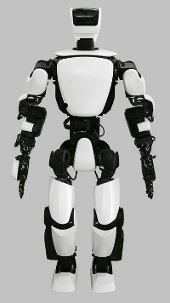

The T-HR3 will explore new technologies for safely managing physical interactions between robots and their surroundings.









The 5-ft-tall, 165-lb T-HR3 reflects Toyota's broad-based exploration of how advanced technologies can help meet people's unique mobility needs. This droid represents an evolution from previous-generation instrument-playing humanoid robots, which were created to test the precise positioning of joints and pre-programmed movements, to a platform with capabilities that can safely assist humans in a variety of settings, such as the home, medical facilities, construction sites, disaster-stricken areas, and even outer space.

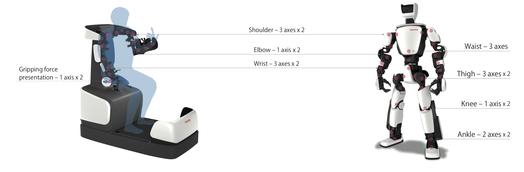

T-HR3's 32 axes are controlled from a Master Maneuvering System that allows the entire body of the robot to be operated instinctively with wearable controls that map hand (with 10 fingers), arm, and foot movements to the robot, and a head-mounted display that allows the user to see from the robot's perspective. The system's master arms give the operator full range of motion of the robot's corresponding joints, and the master foot allows the operator to walk in place in the chair to move the robot forward or laterally. The Self-interference Prevention Technology embedded in T-HR3 operates automatically to ensure the robot and user do not disrupt each other's movements.

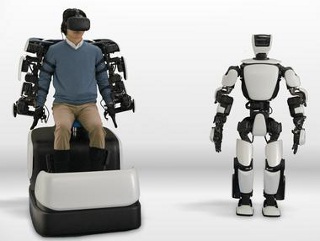

The T-HR3 uses a new remote maneuvering system that mirrors user movements to the robot.





Onboard T-HR3 and the Master Maneuvering System, motors, reduction gears, and torque sensors (collectively called Torque Servo Modules) are connected to each joint. These modules communicate the operator's movements directly to T-HR3's 29 body parts and the Master Maneuvering System's 16 master control systems for a smooth, synchronized user experience. The Torque Servo Module has been developed in collaboration with Tamagawa Seiki Co. and NIDEC COPAL ELECTRONICS CORP. The technology advances Toyota's research into safe robotics by measuring the force exerted by and on T-HR3 as it interacts with its environment and then conveying that information to the operator using force feedback.

VIDEO: The T-HR3 features a new remote maneuvering system that mirrors user movements to the robot.

The Torque Servo Module enables T-HR3's core capabilities: Flexible Joint Control, to control the force of contact the robot makes with any individuals or objects in its surrounding environment; Whole-body Coordination and Balance Control, to maintain the robot's balance if it collides with objects in its environment; and Real Remote Maneuvering, to give users seamless and intuitive control over the robot. These functions have broad implications for future robotics research and development, especially for robots that operate in environments where they must safely and precisely interact with their surroundings.

Torque Servo Module.

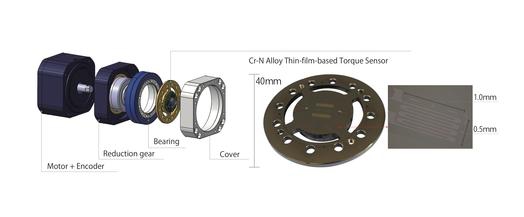

Installation of Torque Servo Modules. (Note: Neck axis not shown on this diagram.)





Toyota has been developing industrial robots since the 1980s to enhance its manufacturing processes. The Partner Robot Division has utilized the insights from that experience and built on Toyota's expertise in automotive technologies to develop new mobility solutions that support doctors, caregivers and patients, the elderly, and people with disabilities.

T-HR3 will be featured at the upcoming International Robot Exhibition 2017 at Tokyo Big Sight from Nov. 29 to Dec. 2.

Source: Toyota Motor Corp.
