Scientists create innovative new 'green' concrete using graphene

A new greener, stronger, and more durable concrete that is made using the wonder material graphene could revolutionize parts of the construction industry.

Experts from the University of Exeter in the UK have developed a pioneering new technique that uses nanoengineering technology to incorporate graphene into traditional concrete production.

The new composite material, which is more than twice as strong and four times more water resistant than existing concretes, can be used directly by the construction industry on building sites. All of the concrete samples tested are according to British and European standards for construction.

Crucially, the new graphene-reinforced concrete material also drastically reduced the carbon footprint of conventional concrete production methods, making it more sustainable and environmentally friendly.

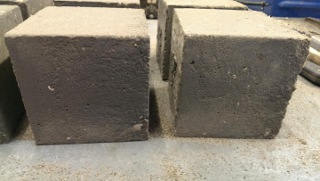

The new concrete developed using graphene by experts from the University of Exeter. [Credit: Dimitar Dimov/University of Exeter]





The research team insists the new technique could pave the way for other nanomaterials to be incorporated into concrete, and so could further modernize the construction industry worldwide.

The research was published in the journal Advanced Functional Materials on April 23, 2018.

Professor Monica Craciun, co-author of the paper and from Exeter's engineering department, said: "Our cities face a growing pressure from global challenges on pollution, sustainable urbanization, and resilience to catastrophic natural events, amongst others.

"This new composite material is an absolute game-changer in terms of reinforcing traditional concrete to meets these needs. Not only is it stronger and more durable, but it is also more resistant to water, making it uniquely suitable for construction in areas which require maintenance work and are difficult to be accessed.

"Yet perhaps more importantly, by including graphene we can reduce the amount of materials required to make concrete by around 50 percent, leading to a significant reduction of carbon emissions.

"This unprecedented range of functionalities and properties uncovered are an important step in encouraging a more sustainable, environmentally friendly construction industry worldwide."

Previous work on using nanotechnology has concentrated on modifying existing components of cement, one of the main elements of concrete production.

In the innovative new study, the research team has created a new technique that centers on suspending atomically thin graphene in water. The final concrete product has a high yield and no defects, a low cost, and a compatibility with modern, large-scale manufacturing requirements.

Dimitar Dimov, the lead author and also from the University of Exeter, added: "This ground-breaking research is important as it can be applied to large-scale manufacturing and construction. The industry has to be modernized by incorporating not only off-site manufacturing, but innovative new materials as well.

"Finding greener ways to build is a crucial step forward in reducing carbon emissions around the world and so help protect our environment as much as possible. It is the first step, but a crucial step in the right direction to make a more sustainable construction industry for the future."

Source: University of Exeter

Published May 2018
