Siemens, BMW developing AC/DC rapid charging for cars

Siemens and BMW are working on an all-in-one charging concept for electric vehicles that they hope will become an international standard. The flexible rapid recharging system will make it possible in the future to use the same charging socket to charge up electric cars on either direct current (DC) or alternating current (AC). The system uses plugs standardized for AC charging that have been modified to accommodate DC charging. Until now, electric vehicles that can be charged with either AC or DC needed to use two different sockets.

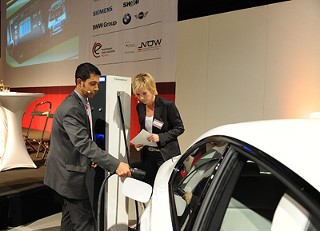

A prototype of the Siemens/BMW AC/DC car-charging system was recently presented in Munich, Germany.





The system was developed by Siemens and BMW for the Modellregion Elektromobilität München – Drive eCharged project. A prototype of the new charging system was recently presented in the Transportation section of the Deutsches Museum in Munich.

Charging times and vehicle range are key aspects that influence consumer acceptance of electric cars. Today's batteries have to be recharged more often than a conventional vehicle needs to be refueled, and the recharging process also takes several hours when a conventional socket is used.

Charging times of half an hour or less can be achieved with DC technology, however. Unlike AC systems, with DC technology the power converter is located outside the vehicle at the charging station, which means the cars that solely use it can be made lighter. This, in turn, increases vehicle range, and combined with short charging times it should make electric vehicles more attractive to fleet operators. Special charging units are required for a DC system, however, which is why the Drive eCharged partners have developed a user-friendly approach that offers several advantages over the systems now in use.

For example, AC and DC plugs fit into the same socket on the vehicle. The new approach also standardizes communication between the vehicle and charging station for AC and DC operations, which means it will be able to support additional functions like smart charging or bi-directional charging for both charging modes in the future. For now, it is expected that DC systems will be able to charge a vehicle to the equivalent of a 100-km range in just 15 minutes.

The new system was successfully tested in September 2011 with a Siemens charging station and a BMW ActiveE vehicle, and Siemens and BMW have already submitted proposals for standardizing DC charging to the International Electrotechnical Commission (IEC). The two companies are planning to continue this work on standardization. The Modellregion Elektromobilität München – Drive eCharged project is funded by Germany's Ministry of Transport, Building, and Urban Development.

Source: Siemens

Published November 2011
