Toyota and Kenworth collaborate to develop zero-emission trucks

Kenworth Truck Company and Toyota Motor North America are collaborating to develop 10 zero-emission Kenworth T680s powered by Toyota hydrogen fuel-cell electric powertrains. The joint effort is part of a $41-million Zero and Near-Zero Emissions Freight Facilities (ZANZEFF) grant preliminarily awarded by the California Air Resources Board (CARB), with the Port of Los Angeles as the prime applicant.

The grant monies are part of a larger $82-million program that will put fuel-cell electric tractors, hydrogen fueling infrastructure, and zero-emissions cargo-handling equipment into operation in the ports and Los Angeles basin in 2020.

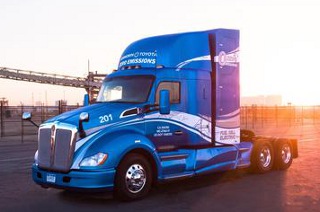

2019 Project Portal Truck--Kenworth/PACCAR.





The Kenworth T680s will transport cargo across the Los Angeles basin and to inland cities -- such as Ontario and San Bernardino -- while generating zero emissions, other than water vapor, thanks to their fully electric hydrogen fuel-cell powertrain integrations co-developed by Kenworth and Toyota.

"This is not just a science experiment; the goal is to make a difference in society. To remove pollution and improve the air quality in and around the Port of Los Angeles," said Bob Carter, executive vice president, Toyota Motor North America.

The Kenworth T680s with the Toyota hydrogen fuel-cell electric powertrains combine hydrogen gas and air to produce electricity. The electricity powers electric motors to move the trucks, while also charging the lithium-ion batteries to optimize performance as needed.

Toyota Project Portal FCV Truck 01.





Sophisticated power-management systems will apportion the electrical power from the fuel cells to the motors, batteries, and other components, such as electrified power steering and brake air compressors. The hydrogen fuel-cell electric-powered Kenworth T680s will have a range of over 300 miles under normal drayage operating conditions.

The program will also fund foundational hydrogen fuel infrastructure, including two new fueling stations that, subject to a final investment decision by Equilon Enterprises LLC (dba Shell Oil Products U.S.), will be developed through Shell Oil Products U.S. to support the operation of the fuel-cell electric trucks in Southern California.

Sources: Toyota, Kenworth

Published January 2019
