Lightweight, long, and lean: Boeing unveils new Transonic Truss-Braced Wing

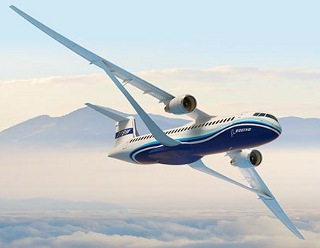

Designed to be more aerodynamic and fuel efficient, Boeing is studying the Transonic Truss-Braced Wing concept through a collaboration with NASA as part of the Subsonic Ultra Green Aircraft Research program. [Boeing Creative Services illustration]









Boeing recently revealed its newest iteration of the Transonic Truss-Braced Wing (TTBW), which researchers say will fly higher and faster than the previous TTBW concepts. The new configuration is designed to offer unprecedented aerodynamic efficiency while flying at Mach 0.80, which is consistent with the speed of many of today's jetliners.

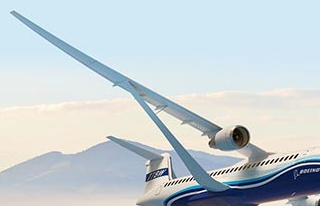

From end to end, the folding wings measure 170 feet. The high wingspan is made possible by the presence of a truss, which supports the extended length of the ultra-thin wing.

Originally, the TTBW was designed to fly at speeds of Mach 0.70 to 0.75. To increase the aircraft's cruise speed, the new concept now has an optimized truss and a modified wing sweep. By adjusting the wing sweep angle, the truss can carry lift more efficiently. The end result was a more integrated design that significantly improved vehicle performance.

The new changes follow extensive wind tunnel testing at NASA Ames Research Center. For nearly a decade, Boeing and NASA have been studying the concept as part of the Subsonic Ultra Green Aircraft Research (SUGAR) program. The research focuses on innovative concepts that reduce noise and emissions while enhancing performance.

Back in 2016, NASA projected that a slimmed-down, truss-based aircraft wing could be expected to reduce fuel and emissions by 50 percent over current-technology transport aircraft, and by 4 to 8 percent compared to equivalent advanced-technology conventional configurations with unbraced wings.

According to Boeing, the high wing also allows easier, more efficient integration of large-diameter fans and open rotor propulsion systems for additional fuel-burn benefits.

Sources: Boeing, NASA

Published February 2019
