BMW features color head-up display initially developed for aviation

BMW was the first European car builder to adapt head-up display technology – a system initially deployed in aviation and further developed over several decades in aircraft like the Eurofighter – for use in volume-production vehicles. Since January 2004, this innovative driver assistance system has been an integral part of BMW ConnectedDrive offered for the BMW 5 Series. Consistently further developed and optimized, it is now offered as a full-color head-up display and optionally available for almost all series.

In terms of graphic representation, functionality, and flexibility, the unique new Head-Up Display feature makes a significant contribution towards active safety by displaying driver-relevant information in high-quality resolution within the driver's direct field of vision, so that he or she does not have to take their eyes off the road. Researchers have found that a normal driver takes a whole second to read the speed indicator in the instrument panel or to glance at the navigation device. While the driver is distracted, that is, without his or her eyes on the road, the vehicle covers a distance of around about 26 ft (14 m) when traveling in urban areas at a speed of 30 mph (about 50 km/h) – virtually a "blind flight." With BMW's Head-Up Display, the time required by the driver to assimilate information is reduced by more than a half, according to the company.

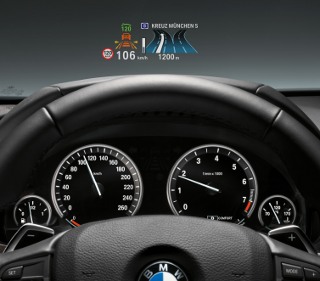

The virtual image projected onto the windscreen is perceived as "hovering" at eye level above the front hood and is visible only to the driver. Moreover, BMW engineers say that this form of display is less tiring, as the eye does not have to constantly change between close-range and remote vision. Also, the brightness of the image adjusts perfectly to the surroundings, so that the eye does not have to readapt each time.

The reproduction of data is effected by means of an intense light source, which is located inside the instrument panel and shines through a translucent TFT (thin-film transistor) display. The image is transferred to the windscreen via specially shaped mirrors. Owing to the convex shape and the physical properties of glass, using the windscreen as a reflector is an extremely complex process. In a windscreen, the light path is normally refracted, resulting in double images.

In the case of the Eurofighter, this problem is solved by means of an additional panel located directly within the pilot's field of vision. BMW tackles this physical phenomenon with the aid of a wafer-thin foil, which is integrated into the windscreen, ensuring the superimposition of the projected images and, as a result, flawless, undistorted representation. Full-color Head-Up Display offers the driver a tremendous increase in reading comfort. The complete color spectrum facilitates a realistic and thus more intuitive display of images and symbols. These speak for themselves, are perceived even faster, and do not have to be decoded or interpreted. Even Eurofighter test pilot Robert Hierl is highly impressed: "Our monochrome head-up display technology is unable to offer such a brilliant display quality," he says.

Source: BMW

Published December 2011
