Latest iRobot Seaglider unmanned underwater vehicle allows for increased payload capabilities

iRobot Corp.'s Seaglider unmanned underwater vehicle (UUV) can now be outfitted with a larger set of fairings, which significantly increases the UUV's volume and mass payload capabilities. Payload mass is doubled over Seaglider's original design to 4 kg, and payload volume has expanded 650% to more than 21,000 cubic cm, resulting in the ability to integrate both larger sensors and a greater number of sensors within Seaglider.

A long-range, high-endurance UUV, Seaglider operates at water depths between 20 m (approximately 65 ft) and 1,000 m (3,280 ft). This is the first UUV to complete a mission lasting longer than nine months without needing to replace its battery, and the first to complete a mission of more than 3,800 km (approximately 2,360 miles).

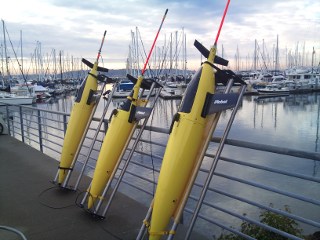

Oceanographers prepare to deploy the latest iRobot Seagliders.[Image: iRobot]





Source: iRobot Corp.
