Indoor solar cells are able to produce enough energy to run IoT devices

Working together, Swedish and Chinese scientists have developed organic solar cells optimized to convert ambient indoor light to electricity. The power they produce is low, but is probably enough to feed the millions of products that the internet of things (IoT) will bring online.

As the IoT expands, it is expected that we will have millions of products online, both in public spaces and in homes. Many of these will be sensors to detect things like moisture measurement, particle concentrations, temperature, and other parameters. For this reason, the demand for small and cheap sources of renewable energy is increasing rapidly, in order to reduce the need for frequent and expensive battery replacements.

This is where organic solar cells come in. Not only are they flexible, cheap to manufacture, and suitable for manufacture as large surfaces in a printing press, they have one further advantage: the light-absorbing layer consists of a mixture of donor and acceptor materials, which gives considerable flexibility in tuning the solar cells so they are optimized for different spectra -- for light of different wavelengths.

Researchers in Beijing, China, led by Jianhui Hou, and Linköping, Sweden, led by Feng Gao, have now together developed a new combination of donor and acceptor materials, with a carefully determined composition, to be used as the active layer in an organic solar cell. The combination absorbs exactly the wavelengths of light that surround us in our living rooms, at the library, and in the supermarket.

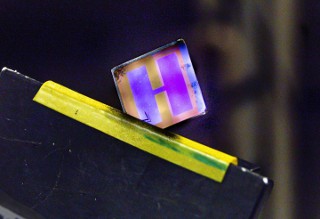

This organic solar cell has been optimized to convert ambient indoor light to electricity. [Credit: Thor Balkhed]





The researchers describe two variants of an organic solar cell in an article in Nature Energy, where one variant has an area of 1 cm² and the other 4 cm². The smaller solar cell was exposed to ambient light at an intensity of 1,000 lux, and the researchers observed that as much as 26.1 percent of the energy of the light was converted to electricity. The organic solar cell delivered a high voltage of above 1 V for more than 1,000 hours in ambient light that varied between 200 and 1,000 lux. The larger solar cell still maintained an energy efficiency of 23 percent.

"This work indicates great promise for organic solar cells to be widely used in our daily life for powering the internet of things," said Feng Gao, senior lecturer in the Division of Biomolecular and Organic Electronics at Linköping University.

"We are confident that the efficiency of organic solar cells will be further improved for ambient light applications in coming years, because there is still a large room for optimization of the materials used in this work," added Jianhui Hou, professor at the Institute of Chemistry, Chinese Academy of Sciences.

The result is a further advance in research within the field of organic solar cells. In the summer of 2018, for example, the scientists, together with colleagues from a number of other universities, published rules for the construction of efficient organic solar cells. Twenty-five researchers from seven universities worked on the article, which was published in Nature Materials. The research was led by Feng Gao. These rules have proven useful to create a pathway to creating efficient solar cells for indoor use.

The Biomolecular and Organic Electronics research group at Linköping University, under the leadership of Olle Inganäs (now professor emeritus), has been a world leader in the field of organic solar cells for many years. A few years ago, Olle Inganäs and his colleague Jonas Bergqvist, who is co-author of the articles in Nature Materials and Nature Energy, founded, and are now co-owners of a company, that focuses on commercializing solar cells for indoor use.

See: "Wide-gap non-fullerene acceptor enabling high-performance organic photovoltaic cells for indoor applications," Yong Cui, Yuming Wang, Jonas Bergqvist, Huifeng Yao, Ye Xu, Bowei Gao, Chenyi Yang, Shaoqing Zhang, Olle Inganas, Feng Gao, and Jianhui Hou, Nature Energy 2019.

Source: Linköping University (Sweden)

Published October 2019
