It's TWEELy happening: Michelin opens world's first manufacturing plant to build airless radial tires

On November 20, 2014, Michelin marked the opening of its newest plant in North America. The Greenville, SC, facility will produce the innovative MICHELIN X TWEEL Airless Radial Tire for commercial applications.

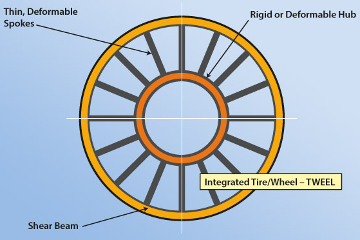

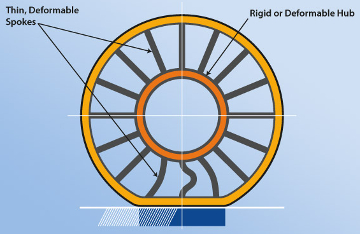

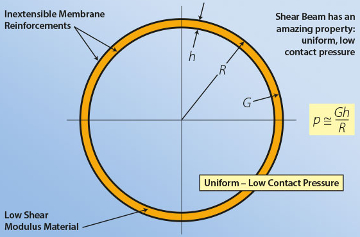

An idea first conceived by Michelin research engineers in the United States, the TWEEL is a revolutionary non-pneumatic tire that has changed up the configuration of a conventional tire, bringing together the tire and the wheel assembly into one solid unit. The TWEEL comprises a rigid hub connected to a shear beam by means of flexible, deformable polyurethane spokes, all functioning as a single unit.

Video: MichelinTweel comparisons

Unlike conventional tires, the TWEEL has no air, thereby solving what had seemed to be the unavoidable challenge of chronic flat tires that plagues the landscape, construction, contracting, refuse/recycling, and agricultural industries.

Video: X Tweel Turf available exclusively on John Deere machines.

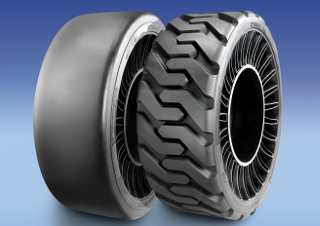

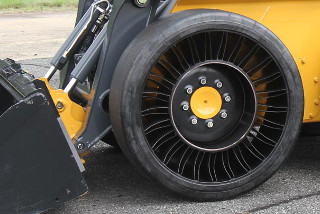

The new plant gives Michelin the ability to boost output of its award-winning MICHELIN X TWEEL SSL skid-steer tires and begin production of the new MICHELIN X TWEEL TURF as original equipment for John Deere to equip its ZTRAK 900 Series line-up of zero-turn commercial mowers.

Vid: Future Car on the TWEEL.

The new 135,000 sq-ft facility represents Michelin's 10th manufacturing facility in South Carolina and the 16th in the United States. The company will invest about $50 million in the new plant.

Learn more at www.michelintweel.com.

Source: Michelin

Published December 2014
